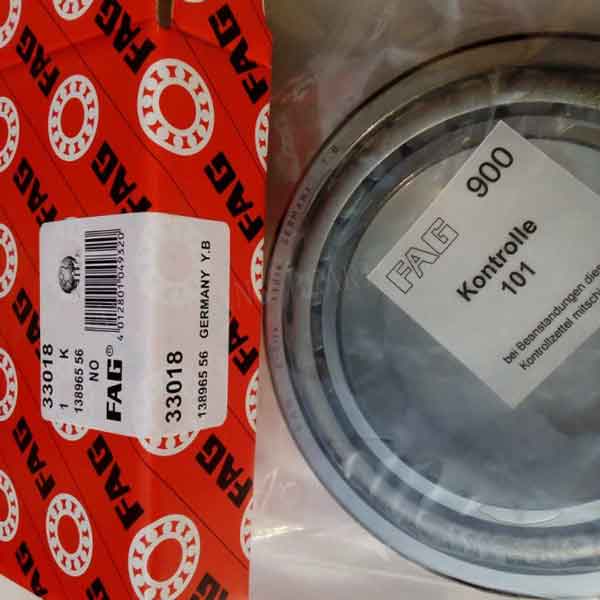

FAG 330 series Tapered roller bearings 33018
Technical data of FAG 33018 / T2CE090
ID: 90 mm
OD: 140 mm
Bearing Width: 39 mm
Cone width: 39 mm
Cup width: 32.5 mm
Weight: 2.26 kg
Basic dynamic load rating: 216 kN
Basic static load rating: 365 kN
Fatigue limit load: 45 kN
Limiting speed: 4750 rpm
Reference speed: 3150 rpm
Part FAG 330 series Tapered roller bearings catalogue
| FAG P/N | ID mm | OD mm | Thk mm |
| 33009 | 45 | 75 | 24 |
| 33010 | 50 | 80 | 24 |
| 33011 | 55 | 90 | 27 |
| 33012 | 60 | 95 | 27 |
| 33013 | 65 | 100 | 27 |
| 33014 | 70 | 110 | 31 |
| 33015 | 75 | 115 | 31 |
| 33016 | 80 | 125 | 36 |
| 33017 | 85 | 130 | 36 |
| 33018 | 90 | 140 | 39 |
| 33019 | 95 | 145 | 39 |
| 33020 | 100 | 150 | 39 |
| 33021 | 105 | 160 | 43 |
| 33022 | 110 | 170 | 47 |
| 33024 | 120 | 180 | 48 |
| 33030 | 150 | 225 | 59 |
| 33030-XL | 150 | 225 | 59 |
