6307

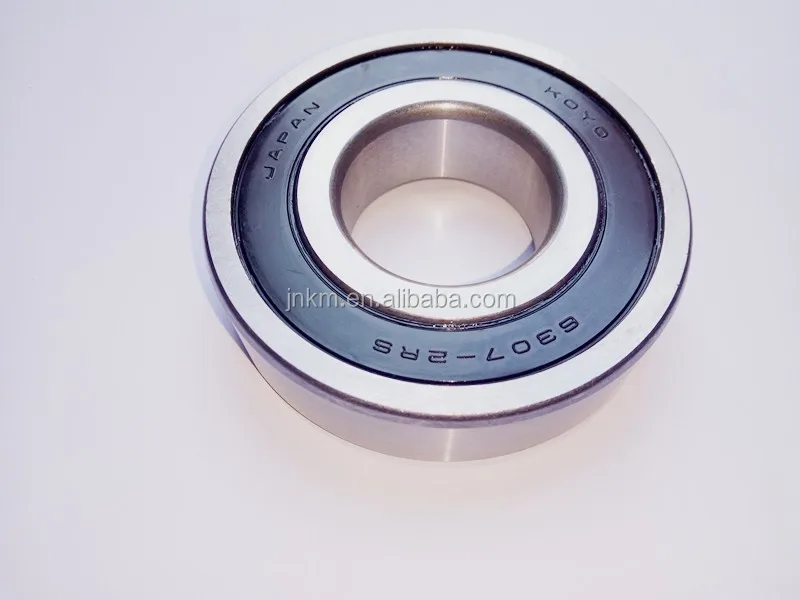

Deep Groove Ball Bearing for Motorcycles 6307
Single row deep groove ball bearing 35mm inside x 80mm outside x 21mm width
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 35mm
Outside diameter: 80mm
Width: 21mm
Basic Load Ratings
Dynamic: 35.1kn
Static: 19kn
Speed Ratings
Reference speed: 19000 r/min
Limiting speed: 12000 r/min
