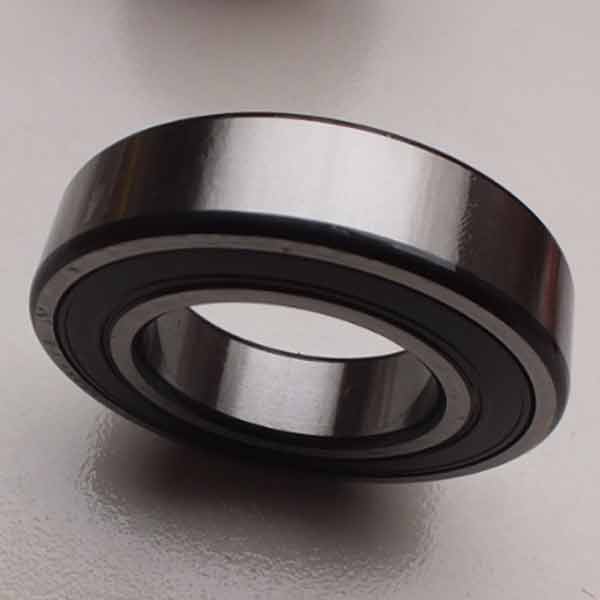

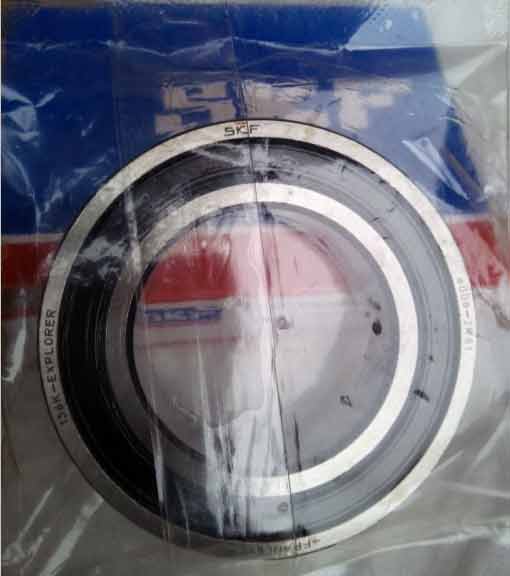

Deep Groove Ball Bearing 6200 , 6201 , 6202 , 6203 , 6204 , 6205 , 6206 , 6207,6208,6209,6210, ZZ / RS
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.
Cage material
Generally use steel stamping cage or solid brass cage. When the diameter is less than 400 mm, use steel stamping cage without rear code, solid brass multipurpose holder without rear code when the diameter greater than 400 mm.
Application
The bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
| Bearing No. | principle dimensions (mm) | limiting speeds(rpm) | basic load ratings(kn) | |||||
| d | D | B | r/min | Grease | oil | dynamic | static | |
| 623 | 3 | 10 | 4 | 0.15 | 50000 | 60000 | 0.63 | 0.218 |
| 624 | 4 | 13 | 5 | 0.2 | 40000 | 48000 | 1.3 | 0.485 |
| 625 | 5 | 16 | 5 | 0.3 | 36000 | 43000 | 1.88 | 0.68 |
| 626 | 6 | 19 | 6 | 0.3 | 32000 | 40000 | 2.34 | 0.885 |
| 627 | 7 | 22 | 7 | 0.3 | 32000 | 37000 | 3.35 | 1.4 |
| 628 | 8 | 24 | 8 | 0.3 | 31000 | 36000 | 4.0 | 1.59 |
| 629 | 9 | 26 | 8 | 0.3 | 30000 | 35000 | 4.55 | 1.96 |
| 6200 | 10 | 30 | 9 | 0.6 | 25000 | 30000 | 5.10 | 2.39 |
| 6201 | 12 | 32 | 10 | 0.6 | 22000 | 26000 | 6.10 | 2.75 |
| 6202 | 15 | 35 | 11 | 0.6 | 19000 | 23000 | 7.75 | 3.60 |
| 6203 | 17 | 40 | 12 | 0.6 | 18000 | 21000 | 9.60 | 4.60 |
| 6204 | 20 | 47 | 14 | 1.0 | 16000 | 18000 | 12.8 | 6.65 |
| 6205 | 25 | 52 | 15 | 1.0 | 13000 | 15000 | 14.0 | 7.85 |
| 6206 | 30 | 62 | 16 | 1.0 | 11000 | 13000 | 19.5 | 11.3 |
| 6207 | 35 | 72 | 17 | 1.1 | 9800 | 11000 | 25.7 | 15.3 |
| 6208 | 40 | 80 | 18 | 1.1 | 8700 | 10000 | 29.1 | 17.8 |
| 6209 | 45 | 52 | 19 | 1.1 | 7800 | 9200 | 32.5 | 20.4 |
| 6210 | 50 | 90 | 20 | 1.1 | 7100 | 8300 | 35.0 | 23.2 |
| 6211 | 55 | 100 | 21 | 1.5 | 6400 | 7600 | 42.5 | 29.2 |
| 6212 | 60 | 110 | 22 | 1.5 | 6000 | 7000 | 52.5 | 36.0 |
| 6213 | 65 | 120 | 23 | 1.5 | 5500 | 6500 | 57.5 | 40.0 |
| 6214 | 70 | 125 | 24 | 1.5 | 5100 | 6000 | 62.0 | 44.0 |
| 6215 | 75 | 130 | 25 | 1.5 | 4800 | 5600 | 66.0 | 49.5 |
| 6216 | 80 | 140 | 26 | 2.0 | 4500 | 5300 | 72.5 | 53.0 |
| 6217 | 85 | 150 | 28 | 2.0 | 4200 | 5000 | 83.5 | 64.0 |
| 6218 | 90 | 160 | 30 | 2.0 | 4000 | 4700 | 96.0 | 71.5 |
| 6219 | 95 | 170 | 32 | 2.1 | 3700 | 4400 | 109.0 | 82.0 |
| 6220 | 100 | 180 | 34 | 2.1 | 3500 | 4200 | 122.0 | 93.0 |
| 6221 | 105 | 190 | 36 | 2.1 | 3400 | 4000 | 133.0 | 105.0 |
| 6222 | 110 | 200 | 38 | 2.1 | 3200 | 3800 | 144.0 | 117.0 |
| 6224 | 120 | 215 | 40 | 2.1 | 2900 | 3400 | 155.0 | 131.0 |
| 6226 | 130 | 230 | 40 | 3.0 | 2700 | 3100 | 167.0 | 146.0 |
