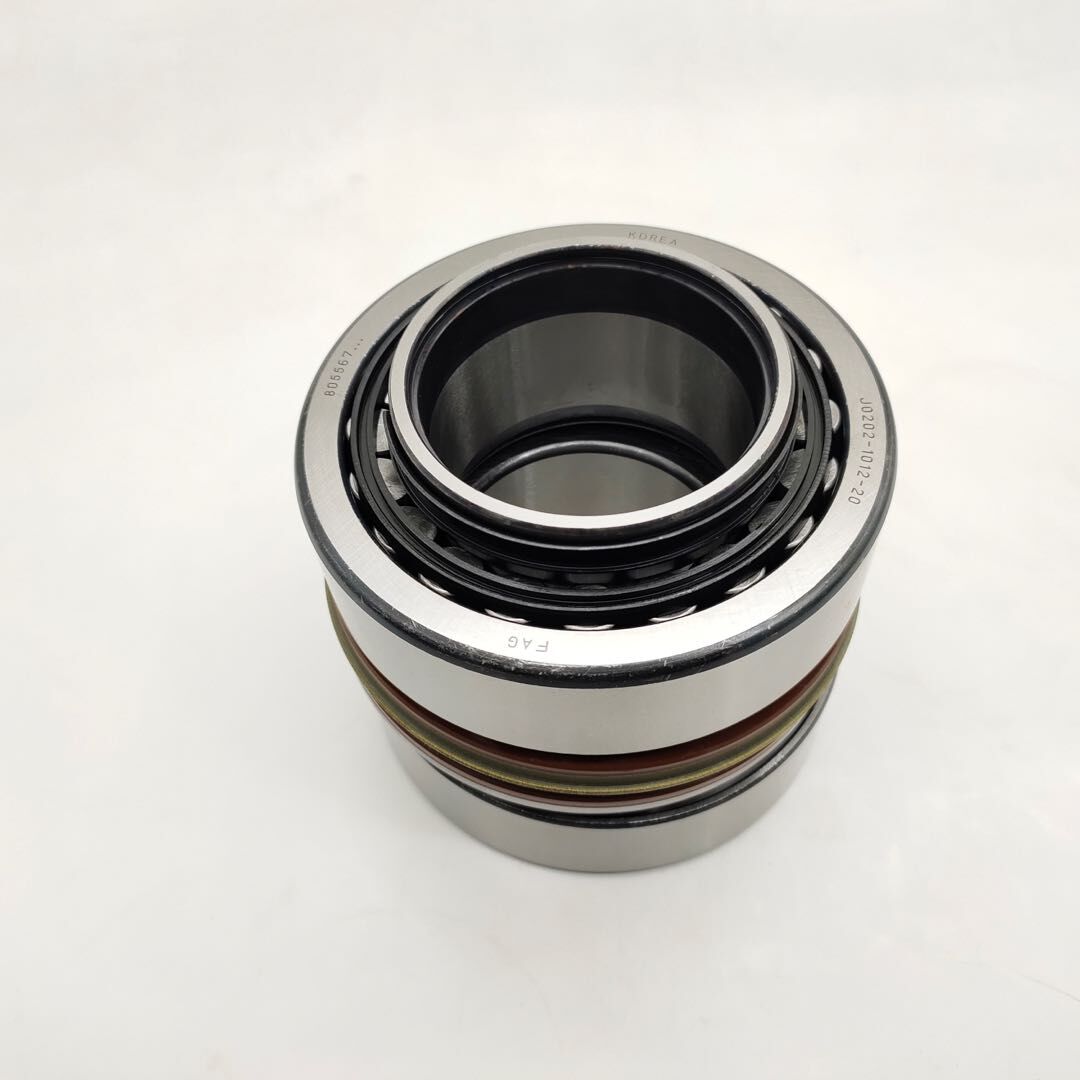

Customized Maglev Bearing 801400A

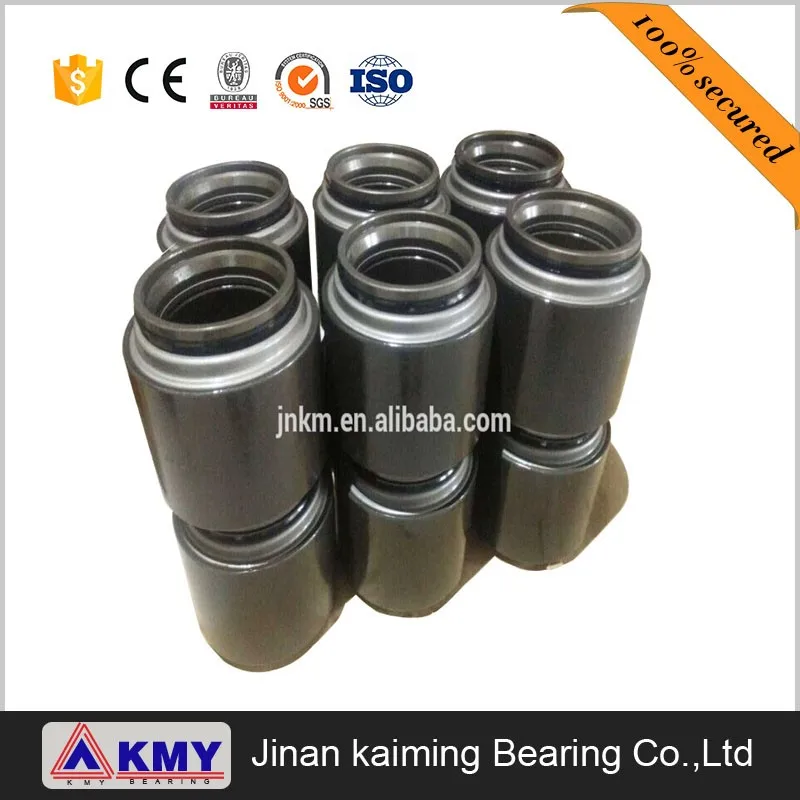

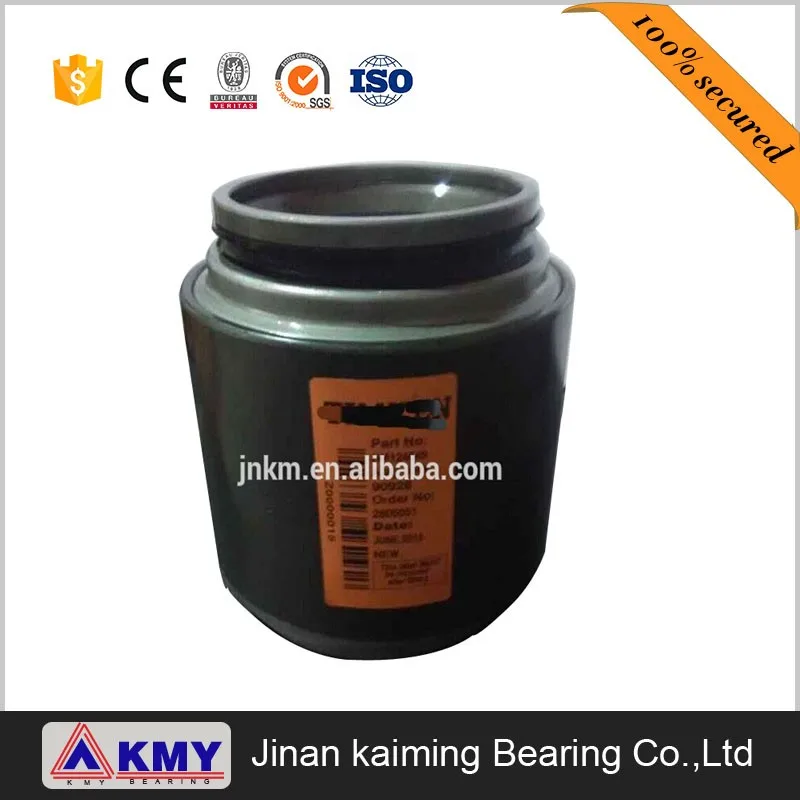

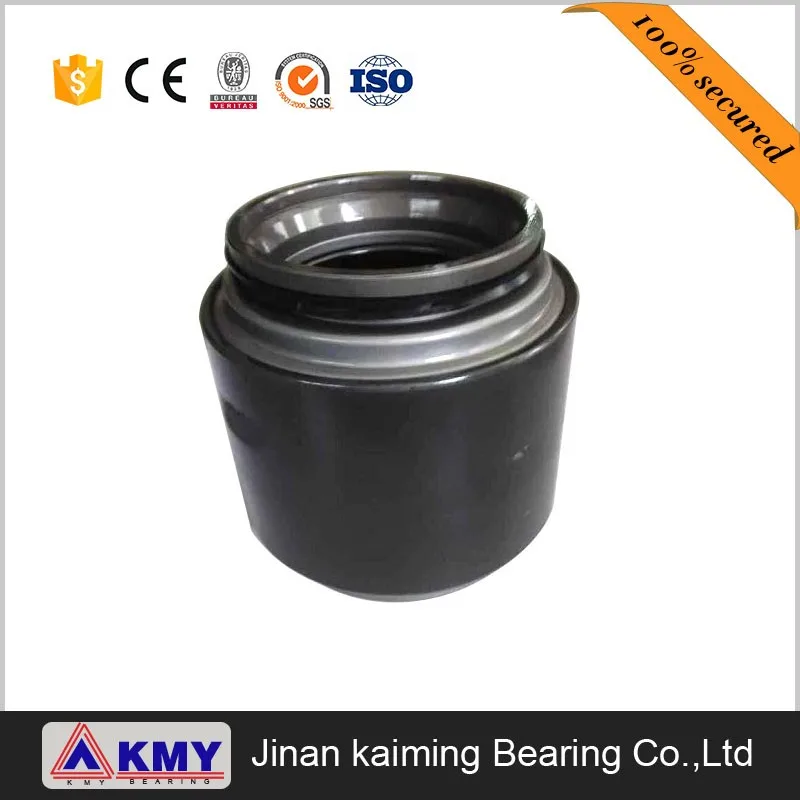

TAROL units (Tapered Roller Bearings) are double row tapered roller bearings that are suppliedwith factory-set clearance, greased
and sealed. The TAROL units are thus supplied ready-to-fit and are pressed onto the shaft journal by means of a hydraulic unit.
TAROL units are used as wheelset bearing supports on rail vehicles such as goods wagons and passenger carriages. They can be mounted quickly and easily: The bearing is pressed onto the shaft journal in a single operation and is secured by means of additional parts and bolts. Due to the press fit of the unit on a shaft journal of a diameter within the specified tolerances, the bearing support achieves the necessary axial clearance.
TAROL units are filled as standard with greases proven in practice. The standard grease in the bearing units with metric dimensions is certified in accordance with EN 12081. Grease approved to AAR is used as standard in the inch dimension units.
We can also supply TAROL units with relubrication holes in the outer ring on request. The relubrication intervals are defined in accordance with the application.
We supply TAROL units in inch and metric dimensions for all standardized shaft journals on rail vehicles. Special dimensions, individual parts, replacement parts and housing adapters are available by agreement.
|HM120848 ||HM120817XD ||HM120848/HM120817XD ||101.6*165.1*114.3 |
|HM120846 || || ||100*165.1*114.3 |
|HM124646 ||HM124618XD ||HM124646/HM124618XD ||119.06*195.26*142.9 |
|HM124649 ||HM124616XD ||HM124649/HM124616XD ||120*195*131.4 |
|HM127446 ||HM127415XD ||HM127446/HM127415XD ||131.75*207.96*152.4 |
|HM127442 ||HM127417XD ||HM127442/HM127417XD ||130*210*132 |
|HM127746 ||H127715XD ||HM127746/HM127715XD ||130*230*160 |
|NP178837 ||NP023784 ||NP178837/NP023784 ||130*250*159 |
|HM129848 ||HM129814XD ||HM129848/HM129814XD ||144.45*220.66*163.5 |
|HM129843 ||HM129813XD ||HM129843/HM129813XD ||140*220*140 |
|HM133444 ||HM133416XD ||HM133444/HM133416XD ||157.15*252.41*184.2 |
|HM133436 ||HM133413XD ||HM133436/HM133413XD ||150*250*160 |
|HM133448 || || ||160*250*160 |
|HM136948 ||HM136916XD ||HM136948/HM136916XD ||177.79*276.23*185.7 |
|H337840 ||H337816XD ||H337840/H337816XD ||165.09*301.7*196.85 |
|H337844 || || ||174.61 |
|NP891226 ||NP379567 ||NP891226/NP379567 ||144.45*219.87*140 |
|NP877824 ||NP335917 ||NP877824/NP335917 ||157.15*249.87*160 |
|NP239427 ||NP540329 ||NP239427/NP540329 ||165.09*263.53*166.7 |
