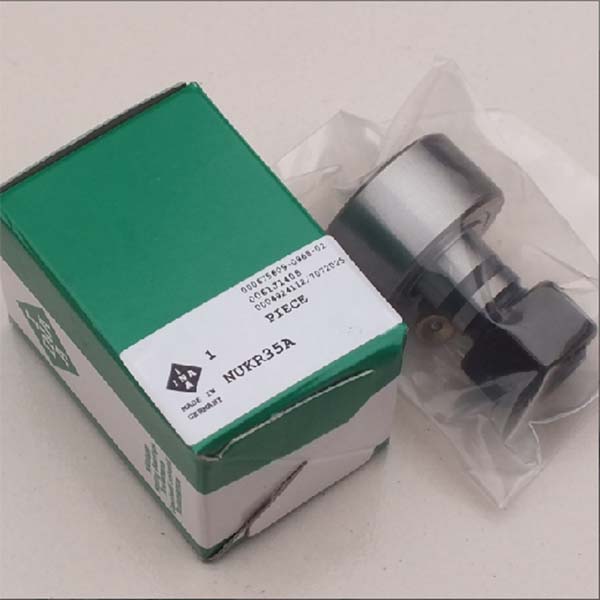

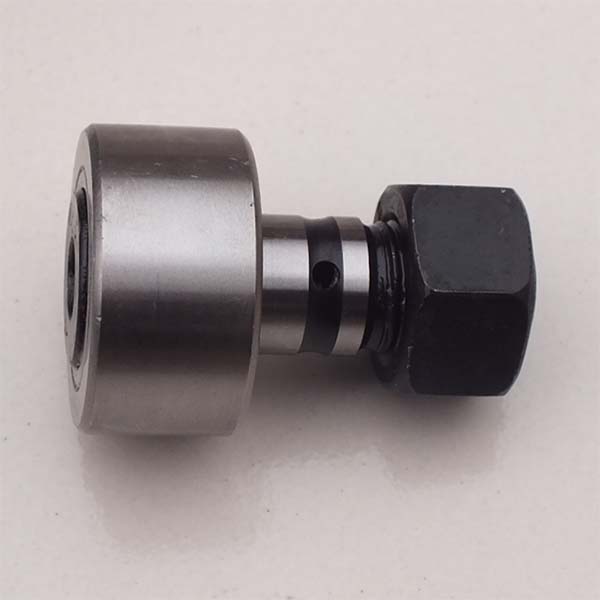

Crowned Cam Follower bearing NUKR35
*Cam follower with cylindrical rollers supports radial and thrust loads in cam- and track-type applications
*Stud-type design with a hexagonal socket for through-hole or threaded mounting
*Full complement of rollers for higher radial load capacity than caged rollers
*Labyrinth seals help retain lubricant and prevent contamination
*Profiled outside surface optimizes the distribution of contact stress
| Roller Diameter: | 35 mm |
| Roller Width: | 18 mm |
| Stud Diameter: | 16 mm |
| Stud Length: | 52 mm |
| Roller Shape: | Crowned |
| Roller Material: | Steel |
| Cylindrical Rollers | |
| Thread Size: | M16x1.5 mm |
| Closure Type: | Double Seal |
| Head Type: | Hex |
| Operating Temperature Range: | Maximum of +280 °F |
| Radial Dynamic Load Capacity: | 8650 N |
| Radial Static Load Capacity: | 12200 N |
| Maximum RPM: | 6500 RPM |
| Lubrication Hole Location: | Head, Stud Side, Stud End |
| Finish/Coating: | Uncoated |
| Standards Met: | ANSI/ABMA Standard 18.1, ISO 7063 |
