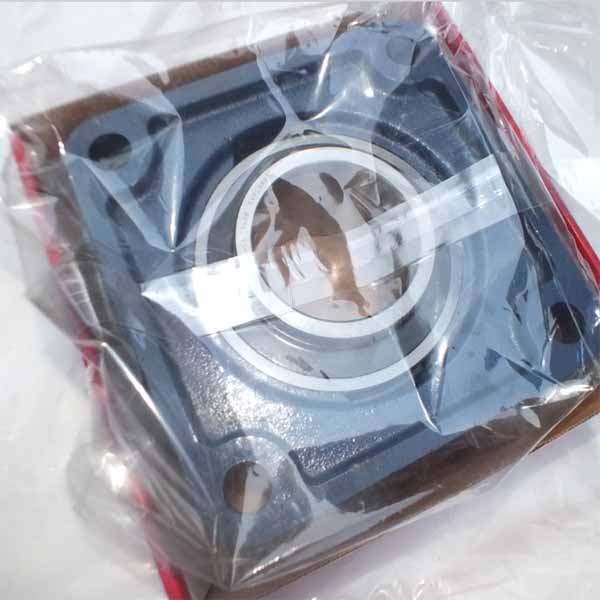

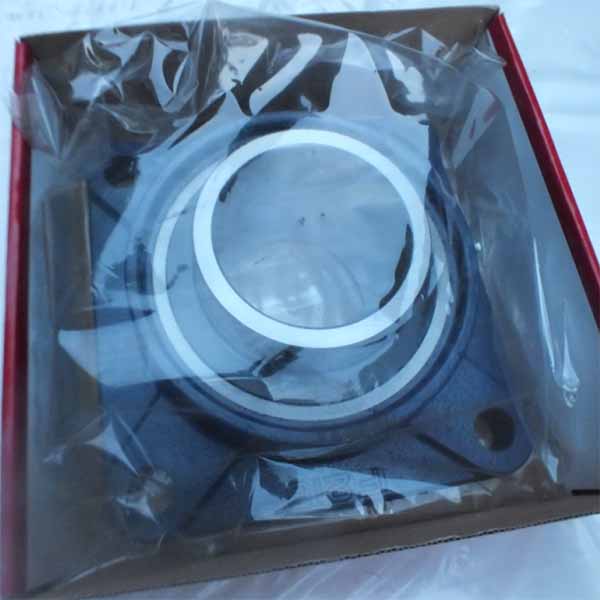

Cast iron square tube gate design jis standard flange UCF207
Shaft diam. (d) : 35 mm
Housing : F207
Insert bearing : UC207G2
No end cap
ISO dynamic load rating (C) : 2570 daN
ISO static load rating (Co) : 1520 daN
Weight : 1.5 kg
UCF207-20 4-Bolt Flange Bearing has a wide inner ring with two set screws for the attachment of the shaft. This bearing UCF 207-20 4-Bolt Flange Bearing has an combination of a set screw chrome steel insert bearing with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.
The UCF200 Series 4-Bolt Flange Bearing is mainly applied in the occasion that the side which is vertical to axis is fixed by 4 bolts. Its fixed mode is the same with UCP Pillow Block Bearing and widely used in machinery.
| Y-bearing flanged units, cast housing, square flange, grub screw locking | ||||||||||||
|
| Product information |
|
|
|
|
|
|
|
|
| ||
|
| ||||||||||||
|
| Dimensions | Basic load ratings | Limiting speed | Mass | Designations | |||||||
|
|
| dynamic | static | with shaft | Bearing unit | Housing | Bearing | |||||
|
|
| tolerance h6 | ||||||||||
|
| d | A1 | J | L | T | C | C0 |
| ||||
|
| ||||||||||||
|
| mm | kN | r/min | kg | - | |||||||
|
| ||||||||||||
|
| 50,8 | 43 | 130 | 162 | 58,4 | 43,6 | 29 | 3600 | 3,6 | FYJ 2. TF | FYJ 511 | YAR 211-200-2F |
|
| 50,8 | 47,5 | 130 | 162 | 63,9 | 43,6 | 29 | 3600 | 3,6 | FY 2. RM | FY 511 U | YAT 211-200 |
|
| 50,8 | 47,5 | 130 | 162 | 64,4 | 43,6 | 29 | 3600 | 3,75 | FY 2. TF | FY 511 M | YAR 211-200-2F |
|
| 50,8 | 47,5 | 130 | 162 | 64,4 | 43,6 | 29 | 1900 | 3,75 | FY 2. TR | FY 511 M | YAR 211-200-2RF |
|
| 55 | 43 | 130 | 162 | 58,4 | 43,6 | 29 | 3600 | 3,45 | FYJ 55 TF | FYJ 511 | YAR 211-2F |
|
| 55 | 47,5 | 130 | 162 | 64,4 | 43,6 | 29 | 3600 | 3,6 | FY 55 TF | FY 511 M | YAR 211-2F |
|
| 55 | 47,5 | 130 | 162 | 64,4 | 43,6 | 29 | 1900 | 3,6 | FY 55 TR | FY 511 M | YAR 211-2RF |
|
| 55,563 | 47,5 | 130 | 162 | 63,9 | 43,6 | 29 | 1900 | 3,42 | FY 2.3/16 RM | FY 511 U | YAT 211-203 |
|
| 55,563 | 47,5 | 130 | 162 | 64,4 | 43,6 | 29 | 3600 | 3,57 | FY 2.3/16 TF | FY 511 U | YAR 211-203-2F |
|
| 55,563 | 52 | 143 | 175 | 73,7 | 52,7 | 36 | 3400 | 5,05 | FYM 2.3/16 TF | FY 512 U | YAR 212-203-2F |
|
| 57,15 | 52 | 143 | 175 | 68,9 | 52,7 | 36 | 3400 | 4,55 | FY 2.1/4 RM | FY 512 U | YAT 212-204 |
|
| 57,15 | 52 | 143 | 175 | 73,7 | 52,7 | 36 | 3400 | 4,75 | FY 2.1/4 TF | FY 512 U | YAR 212-204-2F |
