0685XRN091
NACHI
0685XRN091

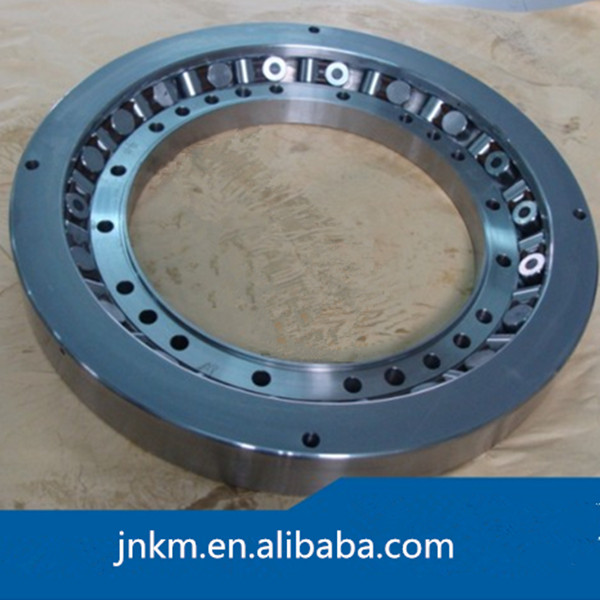

CNC machine tool 0685XRN091 taper cross roller bearing - Nachi bearings
0685XR091: It is an Cross Roller Bearings with improved wear resistance and high stability.
Specification: Tapered cross roller bearing 0685XRN091
Type: Tapered roller bearing
Structure: Tapered
Series: Roller bearings
Model: 0685XRN091
Inner(d): 685.8mm
Outer(D): 914.4mm
Width(T): 79.375mm
Cage: Steel/ brass/ plastic
Material: bearing steel
Basic dynamic load rating: 1090KN
Basic static load rating: 5000KN
(Grease) Lubrication speed: 140r/min
(Oil) Lubrication speed: 280r/min
contact
Email: koyo@chinakmbearing.com
Whatsapp: +86-17854271903
Structure of Tapered Roller Bearing XR Series
Precision crossed roller bearings (XR) are designed to offer the highest levels of rotational accuracy and rigidity while conserving space and saving material costs. The bearing features two sets of races and rollers brought together at right angles with alternate rollers facing in opposite directions. This allows two half-rows of rollers to fit into the space of one. The steep-angle, tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.
Able to withstand high overturning moments, the crossed roller bearing is ideal for the table bearing of machine tools, including vertical boring and grinding machines. It is uniquely suited to many other pivot and pedestal applications where space is limited or the lowest possible center of gravity of a rotating mass is required.
Related Taper Crossed Roller Bearings
XR496051/616093A,
XR678052/615661A/PSL912-309A/300XRN50
XR766051/615894A/PSL912-308A/0457XRN060/XD.10.0457P5
XR820060/615662A/580XRN76/PSL912-304A/XD.10.0580P5
XR855053/615659A/0685XRN091/PSL912-305A/XD.10.0686P5
XR882055/615895A/0901XRN112/PSL912-306A/XD.10.0902P5
XR889058/ BFKB353282/H4A /1028XRN132/PSL912-307A/XD.10.1029P5
XR897051/615898A/XD.10.1549P5
JXR637050,JXR652050,JXR699050
