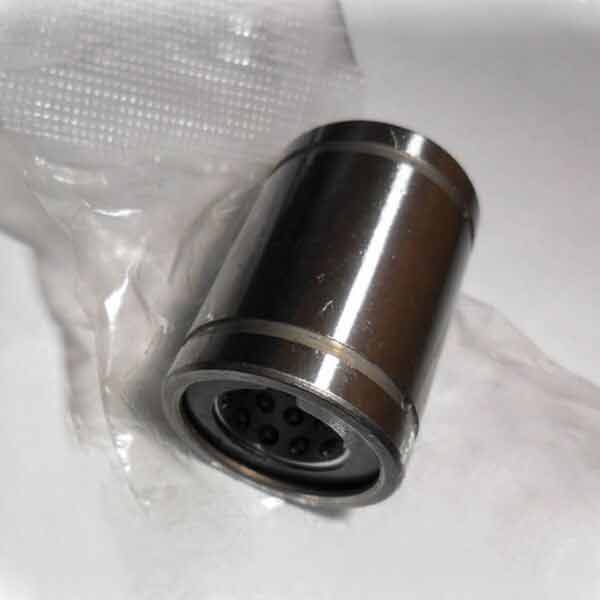

Bush bearing Bushing bearing Linear Ball Bearing LM16UU

ODEL NO.

NUMBER OF BALL ROWS

MAIN DIMENSIONS

WEIGHT

INSCRIBED CIRCLE DIAMETER

OUTER DIAMETER

LENGTH

OUTER LOCKING GROOVE

dr

TOLERANCE

D

TOLERANCE

L

TOLERANCE

B

TOLERANCE

D1

LM3

4

3

0

-0.008

7

0

-0.009

10

0

-0.12

LM4

4

4

8

12

3

LM5

4

5

10

15

10.2

0

-0.20

9.6

4

LM6

4

6

0

-0.009

12

0

-0.011

17

0

-0.20

13.5

11.5

6

LM8S

4

8

15

19

11.5

14.3

9

LM8

4

8

15

24

17.5

14.3

14

LM10

4

10

19

0

-0.013

29

22

18

28

LM12

4

12

21

30

23

20

32

LM13

4

13

23

32

23

22

38

LM16

5

16

28

37

26.5

27

74

LM20

5

20

0

-0.010

32

0

-0.016

42

30.5

30.5

80

LM25

6

25

40

59

0

-0.30

41

0

-0.30

38

206

LM30

6

30

45

64

44.5

43

240

LM35

6

35

0

-0.012

52

0

-0.019

70

49.5

49

370

LM40

6

40

60

80

60.5

57

589

LM50

6

50

80

100

74

76.5

1480

LM60

6

60

0

-0.015

90

0

-0.022

110

85

86.5

1750
