Best selling bearing deep groove ball bearing 6314-2Z
Specification:
The single-row deep groove ball bearing can bear the radial and axial loads,and allows a very high rotation speed.The deep groove ball bearing is non-detachable.
The sealed deep groove ball bearing is free onf maintance,and can simplify the structure.

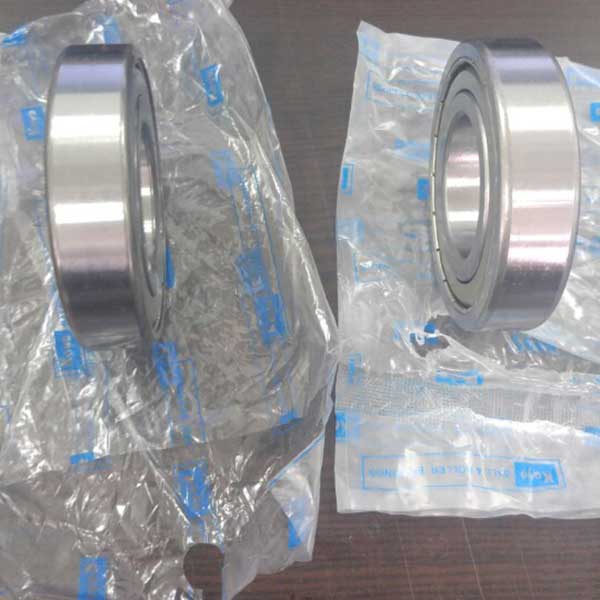

Picture:

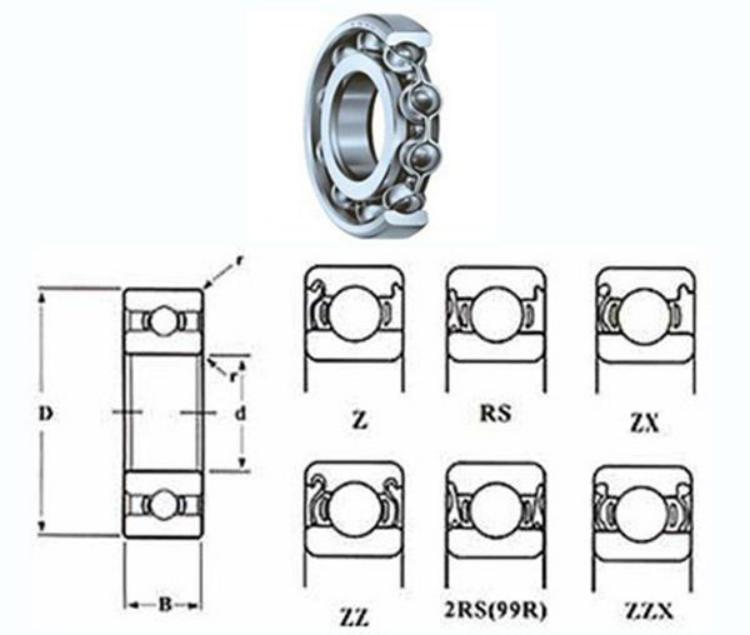

Sealing type:

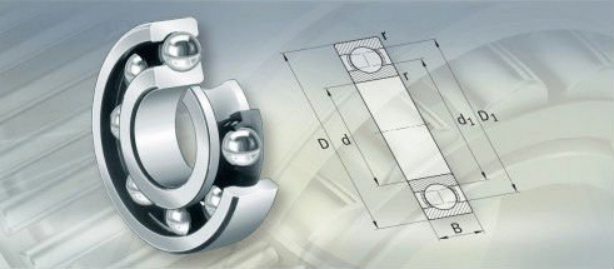

Drawing:
Parameter:
| Bearing No. | d | D | B | r | Load | RPM | Mass | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | C | C0 | r/min | r/min |
| |
| 6300 | 10 | 0.3937 | 35 | 1.378 | 11 | 0.4331 | 0.6 | 0.024 | 8.2 | 3.5 | 15000 | 21000 | 0.053 |
| 6301 | 12 | 0.4724 | 37 | 1.4567 | 12 | 0.4724 | 1 | 0.039 | 9.7 | 4.2 | 14000 | 20000 | 0.06 |
| 6302 | 15 | 0.5906 | 42 | 1.6535 | 13 | 0.5118 | 1 | 0.039 | 11.4 | 5.45 | 13000 | 18000 | 0.082 |
| 6303 | 17 | 0.6693 | 47 | 1.8504 | 14 | 0.5512 | 1 | 0.039 | 13.5 | 6.55 | 12000 | 17000 | 0.115 |
| 6304 | 20 | 0.7874 | 52 | 2.0472 | 15 | 0.5906 | 1.1 | 0.043 | 15.9 | 7.9 | 11000 | 15000 | 0.144 |
| 6305 | 25 | 0.9843 | 62 | 2.4409 | 17 | 0.6693 | 1.1 | 0.043 | 21.2 | 10.9 | 10000 | 13000 | 0.2193 |
| 6306 | 30 | 1.1811 | 72 | 2.8346 | 19 | 0.748 | 1.1 | 0.043 | 26.7 | 15 | 8000 | 10000 | 0.3498 |
| 6307 | 35 | 1.378 | 80 | 3.1496 | 21 | 0.8268 | 1.5 | 0.059 | 33.5 | 19.1 | 6800 | 8000 | 0.4542 |
| 6308 | 40 | 1.5748 | 90 | 3.5433 | 23 | 0.9055 | 1.5 | 0.059 | 40.5 | 24 | 5800 | 7200 | 0.6394 |
| 6309 | 45 | 1.7717 | 100 | 3.937 | 25 | 0.9843 | 1.5 | 0.059 | 53 | 32 | 5000 | 6314 | 0.8363 |
| 6310 | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.063 | 2 | 0.079 | 62 | 38.5 | 4400 | 5500 | 1.0822 |
| 6311 | 55 | 2.1654 | 120 | 4.7244 | 29 | 1.1417 | 2 | 0.079 | 74.1 | 45 | 4200 | 5300 | 1.35 |
| 6312 | 60 | 2.3622 | 130 | 5.1181 | 31 | 1.2205 | 2.1 | 0.083 | 85.2 | 52 | 4000 | 5100 | 1.7 |
| 6313 | 65 | 2.5591 | 140 | 5.5118 | 33 | 1.2992 | 2.1 | 0.083 | 97.5 | 60 | 3900 | 5000 | 2.1 |
| 6314 | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.374 | 2.1 | 0.083 | 111 | 68 | 3800 | 4800 | 2.5 |
| 6315 | 75 | 2.9528 | 160 | 6.2992 | 37 | 1.4567 | 2.1 | 0.083 | 119 | 76.5 | 3600 | 5600 | 3 |
