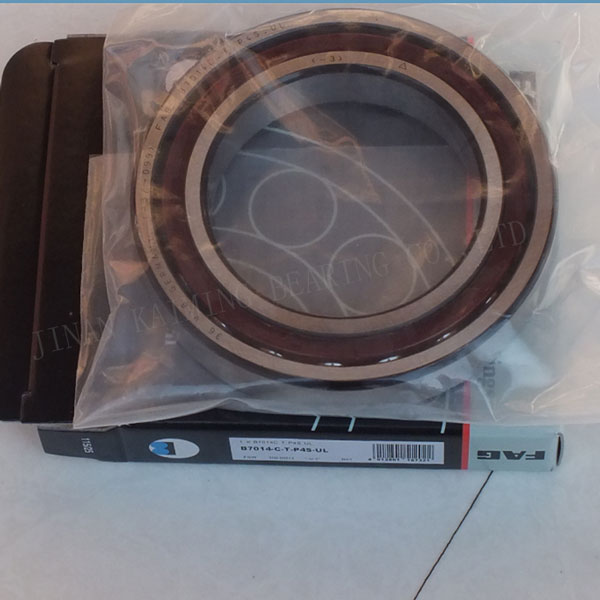

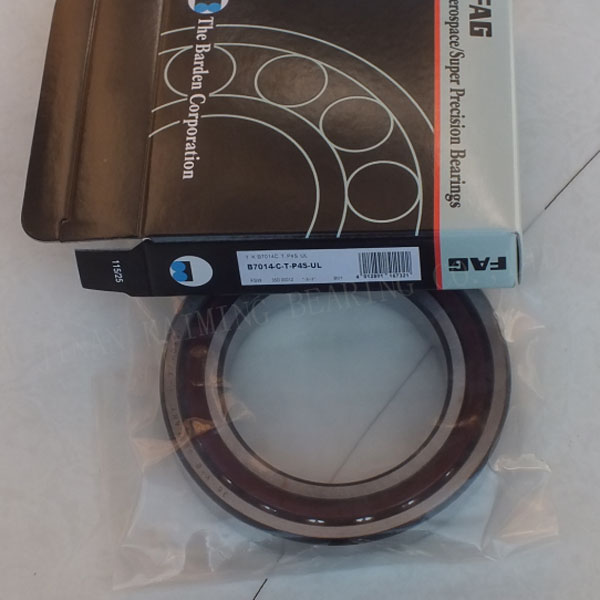

B7014-E-T-P4S-UL High Precision Ball Bearing,Machine tool main spindle bearing

ID (inner diameter)/Bore: 70mm OD (outer diameter): 110mm Width/Height/thickness: 20mm
Quantity:

B7014-E-T-P4S-UL High Precision Ball BearingMachine tool main spindle bearing



B7014.E.T.P4S.UL FAG High Speed Angular contact Ball Bearing
25 degrees Contact Angle
P4 Grade
70mm x 110mm x 20mm
Made in Germany
B7014.E.T.P4S.UL  FAG  High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany
Item: B7014-E-T-P4S-UL FAG Ball BearingFAG machine tool main spindle bearing
Type: FAG Angular contact Ball Bearing
ball: steel
Quality: P4 Grade
Dimensions: 70mm x 110mm x 20mm /Metric
ID (inner diameter)/Bore: 70mm
OD (outer diameter): 110mm
Width/Height/thickness: 20mm
Size:70 x 110 x 20 mm
Quantity: One Bearing
Dynamic load rating Cr: 48000 N
Static load rating Cor: 29000 N
Limiting Speed:
Grease Lubrication: 11,000 RPM
Oil Lubrication: 18,000 RPM
Made in Germany
