4210 ANT9
SKF
4210 ANT9
Auto parts 4210 ANT9 double row deep groov ball bearing - SKF bearing
Specification: 4210 ANT9 deep groove ball bearing
Structure: Deep groove
Series: Ball bearing
Model: 4210 ANT9
Number of row: 2 rows

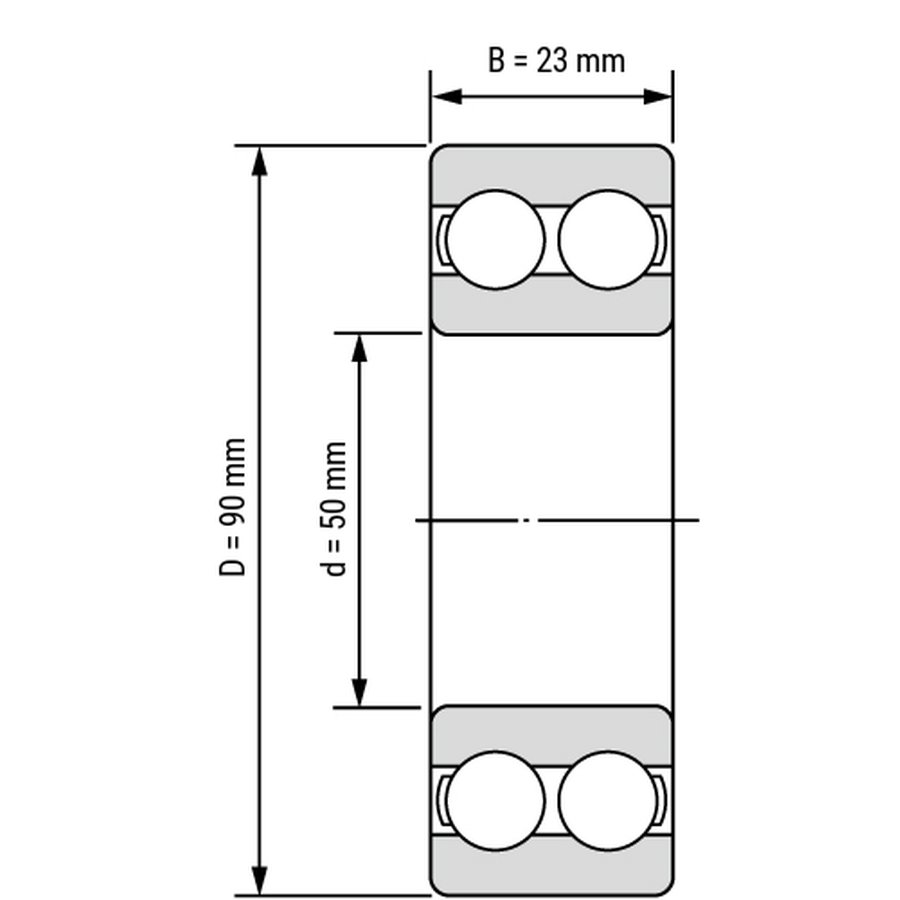

Inner diameter(d): 50mm
Outer diameter(D): 90mm
Thickness(B): 23mm
Weight(W): 0.58kg
Calculation date:
Dynamic load rating: 41KN
Static load rating: 40KN
Fatigue load rating: 1.7KN
Reference speed: 11000r/min
Limiting speed: 6000r/min
Contact: Email: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Deep groove ball bearing can be classified by row number
1. Singe row deep groove ball bearing
2. Double rows deep groove ball bearing
3. Four rows deep groove ball bearing
Applications of deep groove ball bearing: Gearboxes, instruments, motors, pumps, household appliances, internal combustion engines, agricultural machinery, construction machinery, and engineering machinery.
Singe row deep groove ball bearing
Type | Basic Size (mm) | Type | Basic Size (mm) | Type | Basic Size (mm) |
dxDxB | dxDxB | dxDxB | |||
6000 | 10x26x8 | 6200 | 10x30x9 | 6300 | 10x35x11 |
6001 | 12x28x8 | 6201 | 12x32x10 | 6301 | 12x37x12 |
6002 | 15x32x9 | 6202 | 15x35x11 | 6302 | 15x42x13 |
6003 | 17x35x10 | 6203 | 17x40x12 | 6303 | 17x47x14 |
6004 | 20x42x12 | 6204 | 20x47x14 | 6304 | 20x52x15 |
6005 | 25x47x12 | 6205 | 25x52x15 | 6305 | 25x62x17 |
6006 | 30x55x13 | 6206 | 30x62x16 | 6306 | 30x72x19 |
6007 | 35x62x14 | 6207 | 35x72x17 | 6307 | 35x80x21 |
6008 | 40x68x15 | 6208 | 40x80x18 | 6308 | 40x90x23 |
6009 | 45x75x16 | 6209 | 45x85x19 | 6309 | 45x100x25 |
6010 | 50x80x16 | 6210 | 50x90x20 | 6310 | 50x110x27 |
6011 | 55x90x18 | 6211 | 55x100x21 | 6311 | 55x120x29 |
6012 | 60x95x18 | 6212 | 60x110x22 | 6312 | 60x130x31 |
6013 | 65x100x18 | 6213 | 60x120x23 | 6313 | 65x140x33 |
6014 | 70x110x20 | 6214 | 70x125x24 | 6314 | 70x150x35 |
6015 | 75x115x20 | 6215 | 75x130x25 | 6315 | 75x160x37 |
6016 | 80x125x22 | 6216 | 80x140x26 | 6316 | 80x170x39 |
6017 | 85x130x22 | 6217 | 85x150x28 | 6317 | 85x180x41 |
6018 | 90x140x24 | 6218 | 90x160x30 | 6318 | 90x190x43 |
6019 | 95x145x24 | 6219 | 95x170x32 | 6319 | 95x200x45 |
6020 | 100x150x24 | 6220 | 100x180x34 | 6320 | 100x215x47 |
6021 | 105x160x26 | 6221 | 105x190x36 | 6321 | 105x225x49 |
6022 | 110x170x28 | 6222 | 110x200x38 | 6322 | 110x240x50 |
6024 | 120x180x28 | 6224 | 120x215x40 | 6324 | 120x260x55 |
6026 | 130x200x33 | 6226 | 130x230x40 | 6326 | 130x280x58 |
6028 | 140x210x33 | 6228 | 140x250x42 | 6328 | 140x300x62 |
6030 | 150x225x35 | 6230 | 150x270x45 | 6330 | 150x320x65 |
