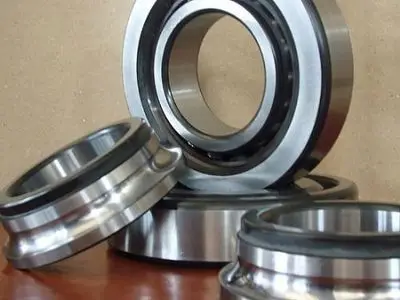

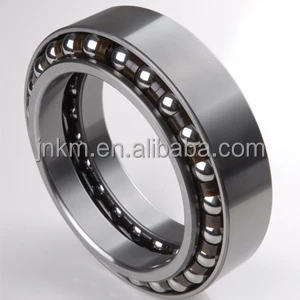

Angular contact thrust ball bearings special for shaft of machine tool BDAB 351903
BDAB 351903 Single direction angular contact thrust ball bearings were originally designed to support the rotary tables of drilling rigs but are also suitable for other applications where high load carrying capacity, high axial stiffness and low friction torque are important. In contrast to conventional thrust ball bearings, angular contact thrust ball bearings can accommodate radial loads in addition to axial loads and are able to operate at high speeds.
Technical data of BDAB 351903
ID: 511.175 mm
OD: 628.65 mm
Height: 66.675 mm
Weight: 35 kg
Basic dynamic load rating: 465 kN
Basic static load rating: 2550 kN
Fatigue load limit: 40 kN
Thrust angular contact ball bearings catalogue
Part No. | ID mm | OD mm | Height mm | Wt.kg |
BA1B 307742 | 355,6 | 457,2 | 57,15 | 22,0 |
BDAB 351903 | 511,175 | 628,65 | 66,675 | 35,0 |
BDAB 307785 | 514,274 | 704,85 | 114,3 | 130 |
BA1B 307740 | 584,2 | 685,8 | 50,8 | 27,5 |
BDAB 307786 | 593,725 | 790,575 | 117,475 | 155 |
BDA-8002 | 600 | 710 | 67 | 41,0 |
BDAB 351905 | 641,35 | 793,75 | 88,9 | 75,0 |
BDAB 351904 | 660,4 | 895,35 | 133,35 | 180 |
BDAB 417262 | 771,525 | 898,525 | 63,5 | 54,0 |
BDAB 307783 | 806,45 | 1,025,525 | 127 | 195 |
BDAB 351869 | 1022,35 | 1181,1 | 88,9 | 160 |
BA1B 307784 | 1066,8 | 1,285,875 | 127 | 315 |
BDAB 351909 | 1346,2 | 1517,65 | 104,775 | 225 |
BDAB 351908 | 1371,6 | 1619,25 | 139,7 | 510 |
ThaNks for your concerning,any question,please kindly let me know,i would like to build win-win coorperation with you.my skype is allison.liu7.have a nice day.
