Welcome to Jinan kaiming Bearing Co., Ltd
6901 2rs 12x24x6mm double seal bicicletas electric motor bearing
You are here: Home » Products » Deep groove ball bearing » 6901 2rs 12x24x6mm double seal bicicletas electric motor bearing

Product Detail

Share to:

6901 2rs 12x24x6mm double seal bicicletas electric motor bearing

6901 2rs 12x24x6mm double seal bicicletas electric motor bearing
Size:
Weight :
Quantity:
  • 6901 2rs
  • KMY/OEM/FAMOUS BRAND
  • 8482102000

Specifications:





Bicycle Bearing


We can supply all kinds of bicycle bearings , such as

(1)bicycle headsets bearing

(2)bicycle bbs bearing

(3)bicycle front/rear hub bearing

(4)bicycle sprockets bearing

(5)bicycle pedals bearing

(6)bicycle pivots bearing

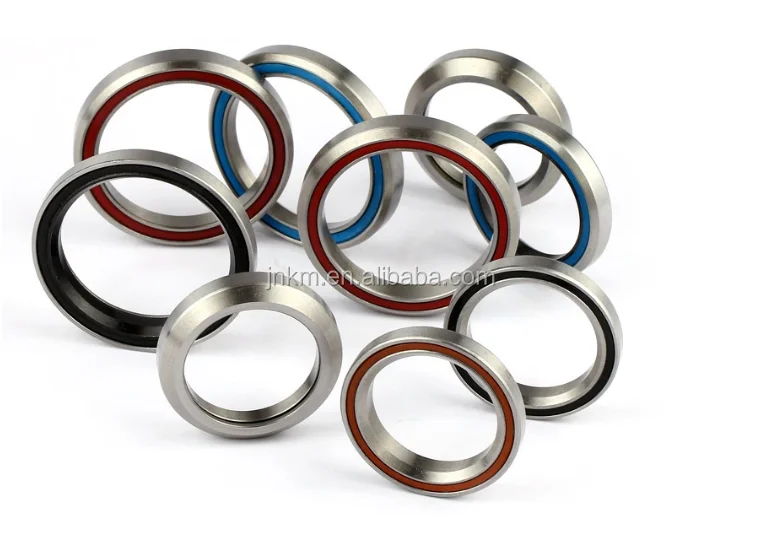

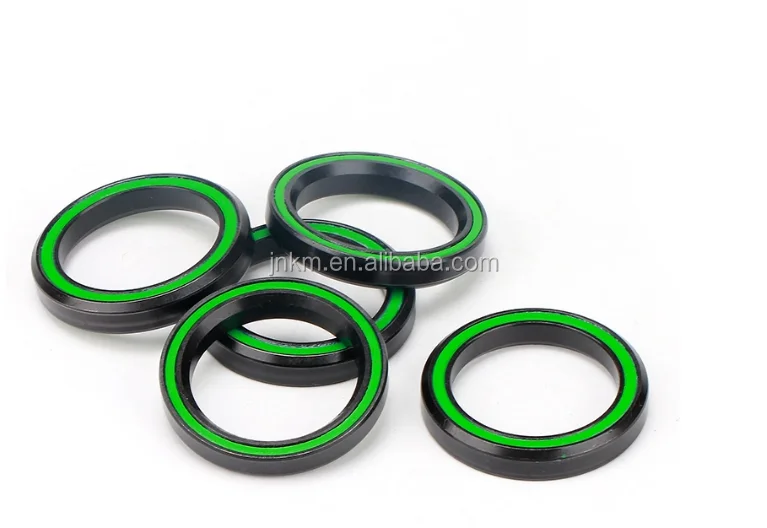

(1) Bicycle Headsets Bearing

Bearing steel material-based, high-grade stainless steel, or hybrid ceramic ball bearings, and some also use titanium Process. The basic use of low-end headset ball cage structure, do not use bearings.

27.15 x 38 x 6.5mm   45°/45°          30.15 x 41 x 7 mm    45°/45°
30.15 x 41 x 6.5mm 45°/45°            30.15 x 41 x 6.5mm 36°/45°

30.15 x 39 x 6.5mm 45/45°              30.15 x 41.8 x 6.5 mm 45/45°

30.15 x 41.8 x 7 mm 45/45°             30.5 x 41.8 x 8 mm 45/45°

30.5 x 41.8 x 8 mm 45/45°               33.5 x 43.8 x 7 mm 30/45°
34.1 x 46.8 x 7mm 45/45°                34.1 x 46.9 x 7mm 45/45°

37 x 49 x 7 mm 45/45°                     39.7 x 50.8 x 7mm 90/90°
40x 51.8 x8 mm 36/45°                    40 x 52 x7 mm 45/45°

40 x 52 x 8mm 45/45°   40 x 52 x 12mm 45/45°   40 x 52 x 6.5 mm 36/45°

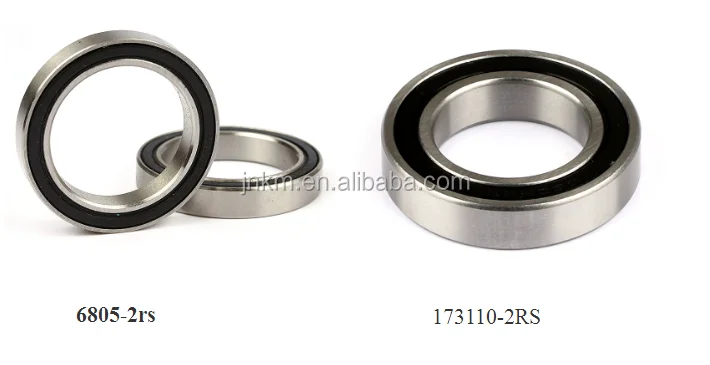

(2) Bicycle BBs Bearing

Axis (BBs) is the most common special regulation ball (which 163110-2RS and 173110-2RS use up) inside use, there are other types of special regulation ball and conventionalinary ball, as 6802-2RS, 6803-2RS, 6804-2RS, 6805-2RS, 6902-2RS, 6903-2RS, 6905-2RS so on. 15267,15268,17287,173110,163108,16287,16277,6805N,MR2437, 163110

(3) Bicycle Front/Rear Hub Bearing

 Hubs (front / rear hubs) using conventional single row ball bearing inside more, and some use special rules single / double row ball bearing. As 6804-2RS, 6805-2RS, 6903-2RS, 6904-2RS, 6905-2RS, currently in Taiwan generally upscale hubs, which use a small size specially tapered roller bearings (mainly for high-end car customization). Front wheel hub bearing to separate the main, rear and some use double row bearings, or two separate parallel use.

608 2RS (chrome)

609 2RS ( chrome)

6000 2RS (stainless steel)

6001 2RS (stainless steel)

6002 2RS (chrome)

6002 RS (stainless steel)

6003 2RS (chrome)

6003 2RS (stainless steel)

6900 2RS (chrome)

6901 2RS (stainless steel)

6902 2RS(stainless steel)

6903 2RS (chrome)

6903 2RS (stainless  steel)

(4) Bicycle Sprockets Bearing

 Sprockets in use to 686-2RS, 608-2RS more, with stainless steel or ceramic ball bearings based

(5) Bicycle Pedals Bearing

Foot (pedals) which use 686-2RS / ZZ, 688-2RS / ZZ, MR137-ZZ-based, and some also use micro-needle roller bearings HK0810, HK1010.

(6) Bicycle Pivots Bearing

Pivot (pivots) which use micro thin-walled 688-2RS, 6800-2RS, 6801-2RS, 6900-2RS, 6902-2RS like more.

Related product

  1.Bicycle BBs Bearing
Axis (BBs) is the most common special regulation ball (which 163110-2RS and 173110-2RS use up) inside use, there are other types of special regulation ball and conventional ordinary ball, as 6802-2RS, 6803-2RS, 6804-2RS, 6805-2RS, 6902-2RS, 6903-2RS, 6905-2RS so on. 15267,15268,17287,173110,163108,16287,16277,6805N,MR2437, 163110


2.Bicycle Front/Rear Hub Bearing

Hubs (front / rear hubs) using conventional single row ball bearing inside more, and some use special rules single / double row ball bearing. As 6804-2RS, 6805-2RS, 6903-2RS, 6904-2RS, 6905-2RS, currently in Taiwan generally upscale hubs, which use a small size specially tapered roller bearings (mainly for high-end car customization). Front wheel hub bearing to separate the main, rear and some use double row bearings, or two separate parallel use.
608 2RS (chrome)    609 2RS ( chrome)       6000 2RS (stainless steel)
6001 2RS (stainless steel)         6002 2RS (chrome)         6002 RS (stainless steel)
6003 2RS (chrome)         6003 2RS (stainless steel)        6900 2RS (chrome)
6901 2RS (stainless steel)      6902 2RS(stainless steel)
6903 2RS (chrome)          6903 2RS (stainless steel)


Product Line:

1)Our company can offer you various kinds of double row spherical roller bearings, which can be used in different situations, such as 22222 CC, 22222EAE4, 22222CA, 22222MB and so on.
 2) Brand: KMY, We also have ability to produce your own brand or other famous brand (NSK, KOYO brand, etc.)

Certificates

Bearing certification.jpg

FAQ

1.What is the MOQ of your company?

Our company MOQ is 1pcs.

2.Could you accept OEM and customize?
YES, we can customize for you according to sample or drawing.

3.Could you supply sample for free?
Yes, we can supply sample for free, but need our customer afford freight.

4.Does your factory have CE?
Yes, we have
 ISO 9001:2008, and SASO. If you want other CE, we can do for you.


5.Does your company factory or Trade Company?

 We have our own factory; our type is factory + trade.

6.What is the guarantee of your bearing quality period:?
1year! Customer need supply photos and send bearing back.
