| Quantity: | |
|---|---|
6308
NTN
6308

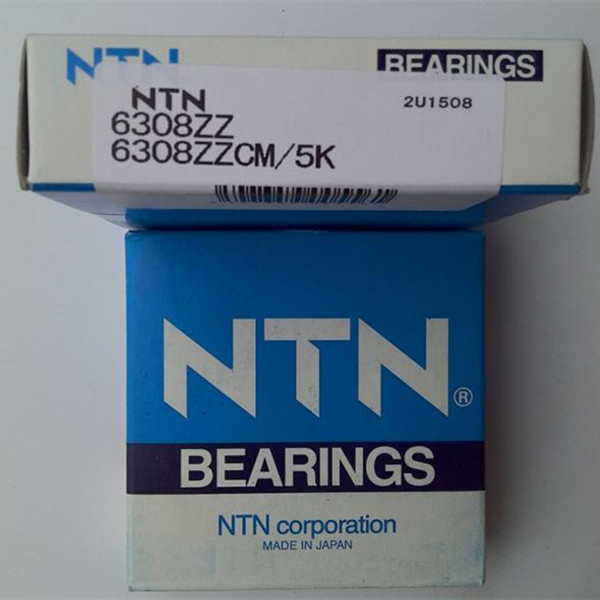

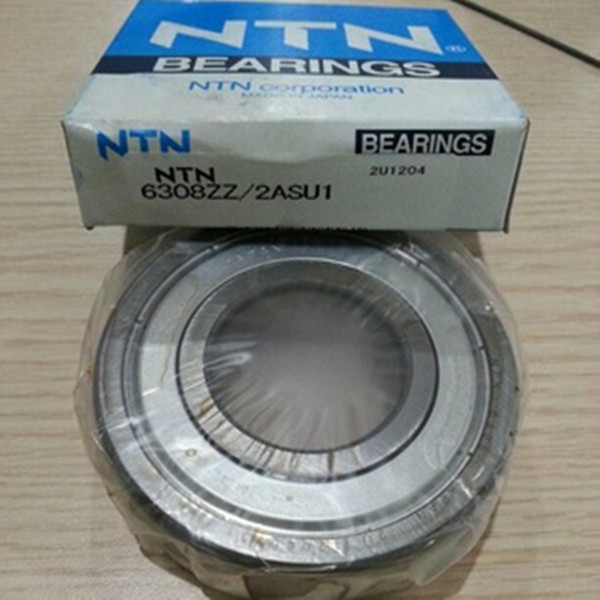

6308 ZZCM/5K NTN Japan deep groove ball bearing - NTN bearings 6308
Specification: 6308 ZZCM/5K deep groove ball bearing
Structure: Deep groove
Series: Ball bearing
Size: 40X90X23mm/ 0.65kg
Number of row: Single
Cage material: Steel/ Brass/ Plastic
Dynamic load rating: 42.3KN
Static load rating: 24KN
Reference speed: 17000r/min
Limiting speed: 8500r/min
Conatct: WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Applications of deep groove ball bearing: Gearboxes, instruments, motors, pumps, household appliances, internal combustion engines, agricultural machinery, construction machinery, and engineering machinery.
Our company also can provide other bearings for you to choose( All brand as you want)!
Type | Basic Size (mm) | Type | Basic Size (mm) | Type | Basic Size (mm) |
dxDxB | dxDxB | dxDxB | |||
6000 | 10x26x8 | 6200 | 10x30x9 | 6300 | 10x35x11 |
6001 | 12x28x8 | 6201 | 12x32x10 | 6301 | 12x37x12 |
6002 | 15x32x9 | 6202 | 15x35x11 | 6302 | 15x42x13 |
6003 | 17x35x10 | 6203 | 17x40x12 | 6303 | 17x47x14 |
6004 | 20x42x12 | 6204 | 20x47x14 | 6304 | 20x52x15 |
6005 | 25x47x12 | 6205 | 25x52x15 | 6305 | 25x62x17 |
6006 | 30x55x13 | 6206 | 30x62x16 | 6306 | 30x72x19 |
6007 | 35x62x14 | 6207 | 35x72x17 | 6307 | 35x80x21 |
6008 | 40x68x15 | 6208 | 40x80x18 | 6308 | 40x90x23 |
6009 | 45x75x16 | 6209 | 45x85x19 | 6309 | 45x100x25 |
6010 | 50x80x16 | 6210 | 50x90x20 | 6310 | 50x110x27 |
6011 | 55x90x18 | 6211 | 55x100x21 | 6311 | 55x120x29 |
6012 | 60x95x18 | 6212 | 60x110x22 | 6312 | 60x130x31 |
6013 | 65x100x18 | 6213 | 60x120x23 | 6313 | 65x140x33 |
6014 | 70x110x20 | 6214 | 70x125x24 | 6314 | 70x150x35 |
6015 | 75x115x20 | 6215 | 75x130x25 | 6315 | 75x160x37 |
6016 | 80x125x22 | 6216 | 80x140x26 | 6316 | 80x170x39 |
6017 | 85x130x22 | 6217 | 85x150x28 | 6317 | 85x180x41 |
6018 | 90x140x24 | 6218 | 90x160x30 | 6318 | 90x190x43 |
6019 | 95x145x24 | 6219 | 95x170x32 | 6319 | 95x200x45 |
6020 | 100x150x24 | 6220 | 100x180x34 | 6320 | 100x215x47 |
6021 | 105x160x26 | 6221 | 105x190x36 | 6321 | 105x225x49 |
6022 | 110x170x28 | 6222 | 110x200x38 | 6322 | 110x240x50 |
6024 | 120x180x28 | 6224 | 120x215x40 | 6324 | 120x260x55 |
6026 | 130x200x33 | 6226 | 130x230x40 | 6326 | 130x280x58 |
6028 | 140x210x33 | 6228 | 140x250x42 | 6328 | 140x300x62 |
6030 | 150x225x35 | 6230 | 150x270x45 | 6330 | 150x320x65 |
Company Information( Jinan Kaiming Bearing Co., Ltd.)
Jinan Kaiming Bearing Co., Ltd. is a famous bearing manufacturer authorized agent and is one of the world famous branded bearing sellers. Jinan Kaiming Bearing Co., Ltd. has produced and exported bearings for 30 years. We are professional manufacturer.
1. Our company insists on the " quality first, credit first" business idea and our product specification is well - founded. We have good reputation in the international market by our perfect service and sufficient inventroy.
2. We use the highest quality, fastest delivery and the best service! We sincerely want to establish firendly relations of cooperation with every customers.
