6200 radial ball bearing/ deep groove ball bearing - SKF bearings 6200
Specification: 6200 radial ball bearing/ deep groove ball bearing - SKF bearings 6200
Structure: Deep groove
Series: Ball bearing
Size: 10*30*9mm
Number of row: Single
Calculation data
Dynamic load rating: 5.4KN
Static load rating: 2.36KN
Reference speed: 56ooor/min
Limiting speed: 36000r/min
Contact: WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Classification of Deep groove ball bearings: Single row deep groove ball bearing; Double row deep groove ball bearing and Four-row deep groove ball bearing.
Applications of deep groove ball bearing: They are commonly used in electric motors and in household appliances, car motors, office machinery, automation control, and garden and household tools. They have deep raceway grooves and their race dimensions are close to the dimensions of the balls that run inside.

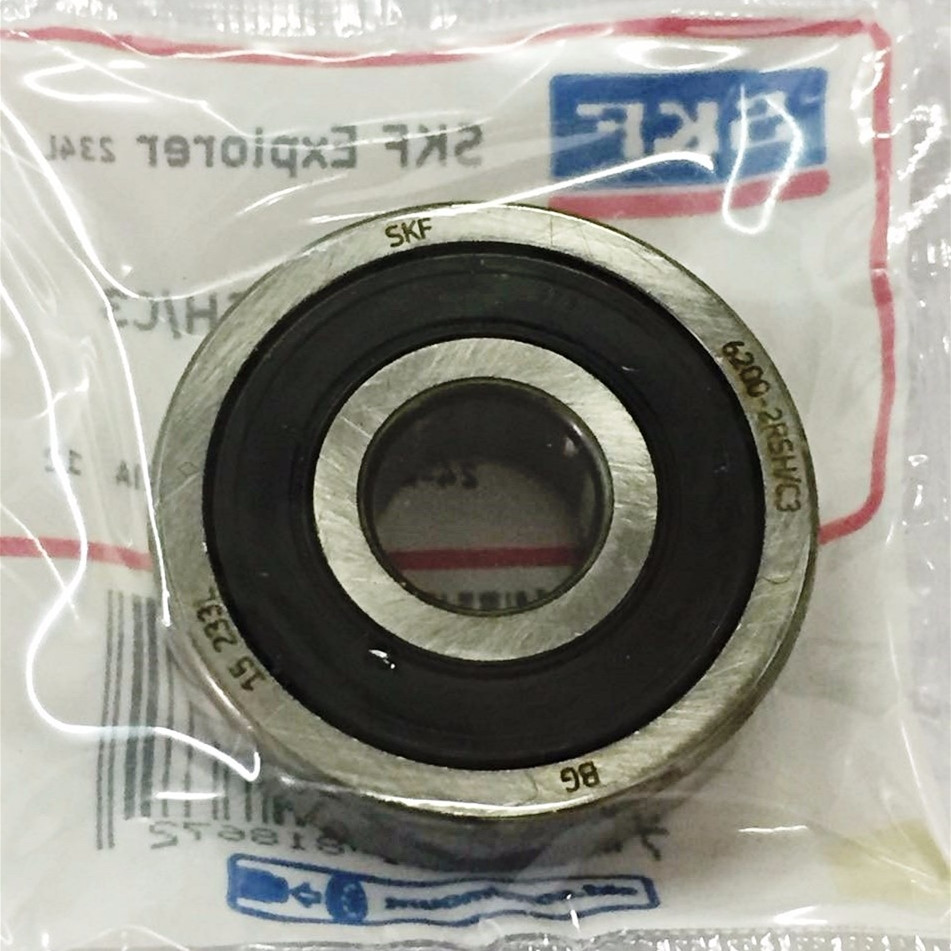

Product picture
Deep groove ball bearing
Type | Basic Size (mm) | Type | Basic Size (mm) | Type | Basic Size (mm) |
dxDxB | dxDxB | dxDxB | |||
6000 | 10x26x8 | 6200 | 10x30x9 | 6300 | 10x35x11 |
6001 | 12x28x8 | 6201 | 12x32x10 | 6301 | 12x37x12 |
6002 | 15x32x9 | 6202 | 15x35x11 | 6302 | 15x42x13 |
6003 | 17x35x10 | 6203 | 17x40x12 | 6303 | 17x47x14 |
6004 | 20x42x12 | 6204 | 20x47x14 | 6304 | 20x52x15 |
6005 | 25x47x12 | 6205 | 25x52x15 | 6305 | 25x62x17 |
6006 | 30x55x13 | 6206 | 30x62x16 | 6306 | 30x72x19 |
6007 | 35x62x14 | 6207 | 35x72x17 | 6307 | 35x80x21 |
6008 | 40x68x15 | 6208 | 40x80x18 | 6308 | 40x90x23 |
6009 | 45x75x16 | 6209 | 45x85x19 | 6309 | 45x100x25 |
6010 | 50x80x16 | 6210 | 50x90x20 | 6310 | 50x110x27 |
6011 | 55x90x18 | 6211 | 55x100x21 | 6311 | 55x120x29 |
6012 | 60x95x18 | 6212 | 60x110x22 | 6312 | 60x130x31 |
6013 | 65x100x18 | 6213 | 60x120x23 | 6313 | 65x140x33 |
6014 | 70x110x20 | 6214 | 70x125x24 | 6314 | 70x150x35 |
6015 | 75x115x20 | 6215 | 75x130x25 | 6315 | 75x160x37 |
6016 | 80x125x22 | 6216 | 80x140x26 | 6316 | 80x170x39 |
6017 | 85x130x22 | 6217 | 85x150x28 | 6317 | 85x180x41 |
6018 | 90x140x24 | 6218 | 90x160x30 | 6318 | 90x190x43 |
6019 | 95x145x24 | 6219 | 95x170x32 | 6319 | 95x200x45 |
6020 | 100x150x24 | 6220 | 100x180x34 | 6320 | 100x215x47 |
6021 | 105x160x26 | 6221 | 105x190x36 | 6321 | 105x225x49 |
6022 | 110x170x28 | 6222 | 110x200x38 | 6322 | 110x240x50 |
6024 | 120x180x28 | 6224 | 120x215x40 | 6324 | 120x260x55 |
6026 | 130x200x33 | 6226 | 130x230x40 | 6326 | 130x280x58 |
6028 | 140x210x33 | 6228 | 140x250x42 | 6328 | 140x300x62 |
6030 | 150x225x35 | 6230 | 150x270x45 | 6330 | 150x320x65 |
