4T - 30204 China hot sell tapered roller bearing in stock - NTN bearings

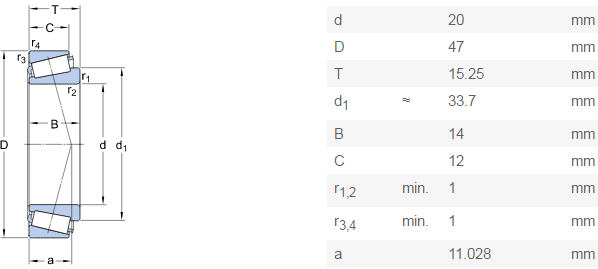

Specification
Model: 4T - 30204
Inner diameter(d): 20mm
Outer diameter(D): 47mm
Thickness(T): 15.25mm
Mass(W): 0.12kg
Dynamic load rating: 34.1KN
Static load rating: 28KN
Reference speed: 5000r/min
Limiting speed: 6000r/min
Comapny Information( Jinan Kaiming Bearing Co., Ltd.）
A professional bearing manufacturer and supplier, Jinan Kaiming Bearing Co., Ltd., which has produced and exported bearings for 30 years. There are large quantity famous brand bearings and owner brand bearings in stock. High quality bearings, best price, short delivery time and comfortable service for you! Look forward to cooperate with you!
Tapered roller bearings
Model | Inner(d)/mm | Outer(D)/mm | Thickness(T)/mm | Mass(W)/kg |
30203 | 17 | 40 | 13.25 | 0.079 |
30204 | 20 | 47 | 15.25 | 0.12 |
30205 | 25 | 52 | 16.25 | 0.15 |
30206 | 30 | 62 | 17.25 | 0.23 |
30207 | 35 | 72 | 18.25 | 0.33 |
30208 | 40 | 80 | 19.75 | 0.42 |
30209 | 45 | 85 | 20.75 | 0.47 |
30210 | 50 | 90 | 21.75 | 0.54 |
30211 | 55 | 100 | 22.75 | 0.7 |
30212 | 60 | 110 | 23.75 | 0.88 |
30213 | 65 | 120 | 24.75 | 1.12 |
30214 | 70 | 125 | 26.25 | 1.24 |
30215 | 75 | 130 | 27.25 | 1.38 |
30216 | 80 | 140 | 28.25 | 1.7 |
30217 | 85 | 150 | 30.5 | 2.05 |
30218 | 90 | 160 | 32.5 | 2.52 |
30219 | 95 | 170 | 34.5 | 2.99 |
30220 | 100 | 180 | 37 | 3.63 |
30221 | 105 | 190 | 39 | 4.29 |
30222 | 110 | 200 | 41 | 5.06 |
30224 | 120 | 215 | 43.5 | 6.13 |
30226 | 130 | 230 | 43.75 | 6.83 |
30228 | 140 | 250 | 45.75 | 8.68 |
30230 | 150 | 270 | 49 | 10.6 |
30232 | 160 | 290 | 52 | 13.9 |
30234 | 170 | 310 | 57 | 16.6 |
30236 | 180 | 320 | 57 | 17 |
30238 | 190 | 340 | 60 | 20.9 |
30240 | 200 | 360 | 64 | 24.6 |
