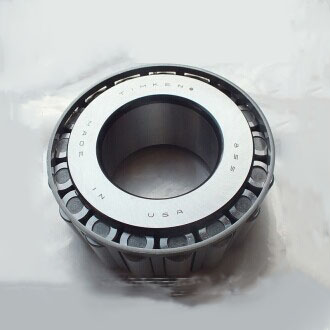

Taper Roller Bearing:
1. 178.595x265.112x51.595mm
2. 9.75KGS
3. Gcr15 material, Chrome steel
4. SKF, NSK, NTN, FAG, INA, TIMKEN, KMY brand option
5. OEM, ODM available
Features of wheel bearing Taper Roller Bearing:
High radial and axial loads in one direction Axial loads in both directions when arranged in pairs Medium speeds Small clearance range when bearing pairs are adjusted during mounting Higher permissible speeds by improved raceway surface roughness Metric and imperial dimensions Outer diameters up to 2500 mm cage optimised for large taper roller bearings installed in planetary carriers Hardened high carbon chromium steel.
Technical Specifications:
Bore diameter 178.595mm
Outside diameter 265.112mm
Width 51.595mm
Model 336948/336912
Tolerance Normal (PN)
Product performance H&K
Bore type Tapered
Number of rows Two
Cage Sheet metal
Sealing None
Radial internal clearance Group 3 (C3)
Locating feature - bearing outside None
Relubrication feature With
Lubricant (in bearing) None
Material/Treatment Bearing steel
Dimension type Metric
Taper Roller Bearing:
1. 178.595x265.112x51.595mm
2. 9.75KGS
3. Gcr15 material, Chrome steel
4. SKF, NSK, NTN, FAG, INA, TIMKEN, KMY brand option
5. OEM, ODM available
Features of wheel bearing Taper Roller Bearing:
High radial and axial loads in one direction Axial loads in both directions when arranged in pairs Medium speeds Small clearance range when bearing pairs are adjusted during mounting Higher permissible speeds by improved raceway surface roughness Metric and imperial dimensions Outer diameters up to 2500 mm cage optimised for large taper roller bearings installed in planetary carriers Hardened high carbon chromium steel.
Technical Specifications:
Bore diameter 178.595mm
Outside diameter 265.112mm
Width 51.595mm
Model 336948/336912
Tolerance Normal (PN)
Product performance H&K
Bore type Tapered
Number of rows Two
Cage Sheet metal
Sealing None
Radial internal clearance Group 3 (C3)
Locating feature - bearing outside None
Relubrication feature With
Lubricant (in bearing) None
Material/Treatment Bearing steel
Dimension type Metric
