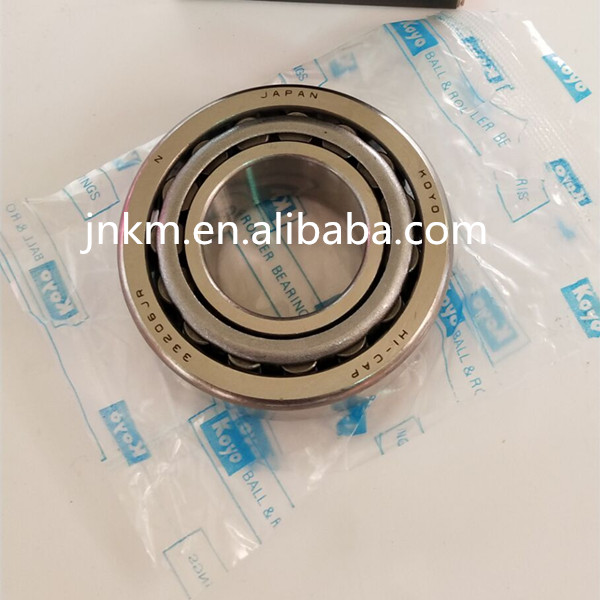

33206 Tapered roller bearing - Japan bearing KOYO 33206JR
Specification:33206JR Tapered roller bearing
Type: Tapered roller bearing
Model: 33206JR
Inner(d): 30mm
Outer(D): 62mm
Width(T): 25mm
Mass(W): 0.35kg
Material: GCr15/ Bearing steel
Number of row: 1
Calculation data:
Basic Dynamic load rating: 79.7KN
Basic Static load rating: 76.5KN
Fatigue load rating: 72KN
Reference speed: 8500r/min
Limiting speed: 11000r/min
contact:
Email: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Bearing Applications:
HIGH PERFORMANCE AND RELIABLE BEARINGS FOR A HUGE VARIETY OF ELECTRICAL APPLICATIONS.
1. All type of bearing are windly used in automobile and electrical machinery.
Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines.
2. Equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries.
Tapered roller bearing
Model | Inner(mm) | Outer(mm) | Width(mm) | Mass(kg) |
32203 | 17 | 40 | 17.25 | 0.105 |
32204 | 20 | 47 | 19.25 | 0.16 |
32205 | 25 | 52 | 19.25 | 0.19 |
32206 | 30 | 62 | 21.25 | 0.29 |
32207 | 35 | 72 | 24.25 | 0.44 |
32208 | 40 | 80 | 24.75 | 0.53 |
32209 | 45 | 85 | 24.75 | 0.58 |
32210 | 50 | 90 | 24.75 | 0.62 |
32211 | 55 | 100 | 26.75 | 0.84 |
32212 | 60 | 100 | 29.75 | 1.15 |
32213 | 65 | 120 | 32.75 | 1.51 |
32214 | 70 | 125 | 33.25 | 1.6 |
32215 | 75 | 130 | 33.25 | 1.67 |
32216 | 80 | 140 | 35.25 | 2.06 |
32217 | 85 | 150 | 38.5 | 2.61 |
32218 | 90 | 160 | 42.5 | 3.33 |
32219 | 95 | 170 | 45.5 | 4.09 |
32220 | 100 | 180 | 49 | 4.93 |
32221 | 105 | 190 | 53 | 6.02 |
32222 | 110 | 200 | 56 | 7.09 |
32224 | 120 | 215 | 61.5 | 9.05 |
32226 | 130 | 230 | 67.75 | 11.2 |
32228 | 140 | 250 | 71.75 | 14.2 |
32230 | 160 | 270 | 77 | 17.9 |
32232 | 160 | 290 | 84 | 23.2 |
32234 | 170 | 310 | 91 | 28.6 |
32236 | 180 | 320 | 91 | 29.5 |
32238 | 190 | 340 | 97 | 36 |
32240 | 200 | 360 | 104 | 42.4 |
