25590/22
KOYO
25590/22

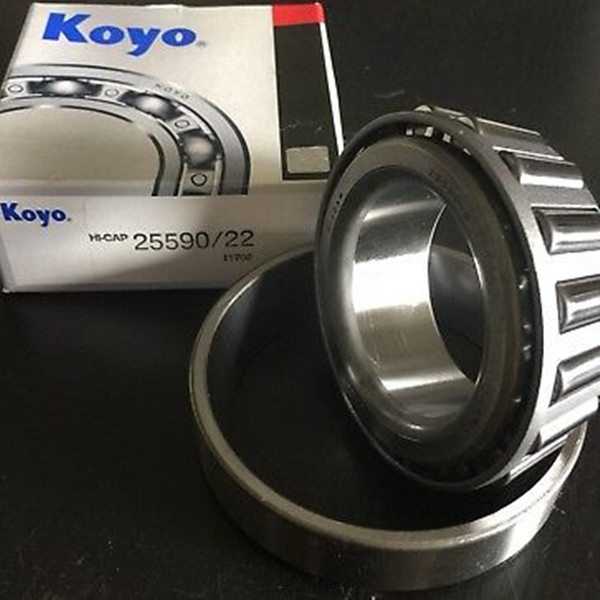

25590/25522 25590/22 FAGTapered roller bearing
Specification: 25590/22
Brand: NTN/SKF/FAG/TIMKEN/INA/IKO/NSK/Koyo/NACHI/KBC/OEM/KMY...
Series: Tapered roller bearing
Model: 25590/22
Dimension: 45.618x83.058x23.876mm/ 0.55kg
Material: GCr15 chrome steel
Quality Standard: ISO9001:2008
Basic dynamic load rating: 99.1KN
Basic static load rating: 106KN
Fatigue load limit: 11.8KN
If you want to know more details, just contact me.
WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Tapered roller bearing:
Description: The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing.
Application: In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.
Common real world applications are in agriculture, construction and mining equipment, sports robot combat, axle systems, gear box, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
| Type | Basic Size (mm) | Type | Basic Size (mm) |
| dxDxB | dxDxB | ||
| 11590/11520 | 15.875x42.862x14.288 | 02877/20 | 34.925x73.025x18.288 |
| 09067/09195 | 19.05x49.225x19.05 | 25877/20 | 34.925x73.025x22.225 |
| 12580/20 | 20.638x49.225x19.845 | 3872/20 | 34.925x85.725x30.162 |
| 12649/10 | 21.430x50.005x18.288 | 68149/11 | 34.988x59.974x16.764 |
| 12749/11 | 21.986x45.974x16.637 | 88648/10 | 35.717x72.233x25.4 |
| 12648/10 | 22.225x50.005x18.288 | 25880/21 | 36.487x73.025x24.608 |
| 1780/1729 | 25.4x56.896x19.827 | 2780/20 | 36.487x76.2x25.654 |
| 15101/15243 | 25.4x61.912x20.638 | 69349/10 | 38x63x17 |
| 15103/15245 | 26.157x62x20.638 | 2788/20 | 38.1x79.2x25.654 |
| 44649/10 | 26.988x50.292x14.732 | 27880/20 | 38.1x80.035x23.698 |
| 15580/15523 | 26.988x60.325x17.462 | 801349/10 | 40.483x82.55x28.575 |
| 15112/15245 | 28.575x62x20.638 | 300849/11 | 40.988x67.975x18 |
| 02474/20 | 28.575x68.262x22.225 | 18590/20 | 41.275x73.025x17.462 |
| 45449/10 | 29x50.292x14.224 | 501349/10 | 41.275x73.431x19.812 |
| 151174/245 | 29.987x62x20.638 | 501349/14 | 41.275x73.431x19.812 |
| 88540/13 | 30x72x27.738 | 11162/111315 | 41.275x80x17.384 |
| 86649/10 | 30.162x64.292x21.433 | 25578/20 | 42.862x82.931x25.4 |
| 15120/245 | 30.213x62x20.638 | 25580/20 | 44.45x82.931x25.4 |
| 67048/10 | 31.75x59.131x16.764 | 25582/20 | 44.45x82.931x25.4 |
| 15123/245 | 31.75x62x19.05 | 355/354 | 44.45x85x21.692 |
| 15125/245 | 31.75x62x20.638 | 801349/10 | 44.45x88.9x29.37 |
| 02475/20 | 31.75x68.262x23.812 | 527/522 | 44.45x101.6x36.068 |
| 88048/10 | 33.338x68.262x22.225 | 460/453 | 44.45x104.775x29.317 |
| 48548/10 | 34.925x65.088x22.225 | 367/362 | 45x88.9x22.25 |
25590/25522 25590/22 FAGTapered roller bearing
Specification: 25590/22
Brand: NTN/SKF/FAG/TIMKEN/INA/IKO/NSK/Koyo/NACHI/KBC/OEM/KMY...
Series: Tapered roller bearing
Model: 25590/22
Dimension: 45.618x83.058x23.876mm/ 0.55kg
Material: GCr15 chrome steel
Quality Standard: ISO9001:2008
Basic dynamic load rating: 99.1KN
Basic static load rating: 106KN
Fatigue load limit: 11.8KN
If you want to know more details, just contact me.
WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Tapered roller bearing:
Description: The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing.
Application: In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.
Common real world applications are in agriculture, construction and mining equipment, sports robot combat, axle systems, gear box, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
| Type | Basic Size (mm) | Type | Basic Size (mm) |
| dxDxB | dxDxB | ||
| 11590/11520 | 15.875x42.862x14.288 | 02877/20 | 34.925x73.025x18.288 |
| 09067/09195 | 19.05x49.225x19.05 | 25877/20 | 34.925x73.025x22.225 |
| 12580/20 | 20.638x49.225x19.845 | 3872/20 | 34.925x85.725x30.162 |
| 12649/10 | 21.430x50.005x18.288 | 68149/11 | 34.988x59.974x16.764 |
| 12749/11 | 21.986x45.974x16.637 | 88648/10 | 35.717x72.233x25.4 |
| 12648/10 | 22.225x50.005x18.288 | 25880/21 | 36.487x73.025x24.608 |
| 1780/1729 | 25.4x56.896x19.827 | 2780/20 | 36.487x76.2x25.654 |
| 15101/15243 | 25.4x61.912x20.638 | 69349/10 | 38x63x17 |
| 15103/15245 | 26.157x62x20.638 | 2788/20 | 38.1x79.2x25.654 |
| 44649/10 | 26.988x50.292x14.732 | 27880/20 | 38.1x80.035x23.698 |
| 15580/15523 | 26.988x60.325x17.462 | 801349/10 | 40.483x82.55x28.575 |
| 15112/15245 | 28.575x62x20.638 | 300849/11 | 40.988x67.975x18 |
| 02474/20 | 28.575x68.262x22.225 | 18590/20 | 41.275x73.025x17.462 |
| 45449/10 | 29x50.292x14.224 | 501349/10 | 41.275x73.431x19.812 |
| 151174/245 | 29.987x62x20.638 | 501349/14 | 41.275x73.431x19.812 |
| 88540/13 | 30x72x27.738 | 11162/111315 | 41.275x80x17.384 |
| 86649/10 | 30.162x64.292x21.433 | 25578/20 | 42.862x82.931x25.4 |
| 15120/245 | 30.213x62x20.638 | 25580/20 | 44.45x82.931x25.4 |
| 67048/10 | 31.75x59.131x16.764 | 25582/20 | 44.45x82.931x25.4 |
| 15123/245 | 31.75x62x19.05 | 355/354 | 44.45x85x21.692 |
| 15125/245 | 31.75x62x20.638 | 801349/10 | 44.45x88.9x29.37 |
| 02475/20 | 31.75x68.262x23.812 | 527/522 | 44.45x101.6x36.068 |
| 88048/10 | 33.338x68.262x22.225 | 460/453 | 44.45x104.775x29.317 |
| 48548/10 | 34.925x65.088x22.225 | 367/362 | 45x88.9x22.25 |
