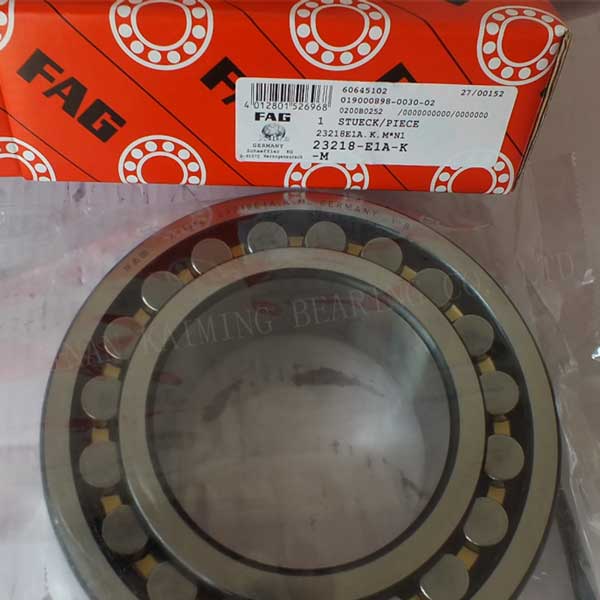

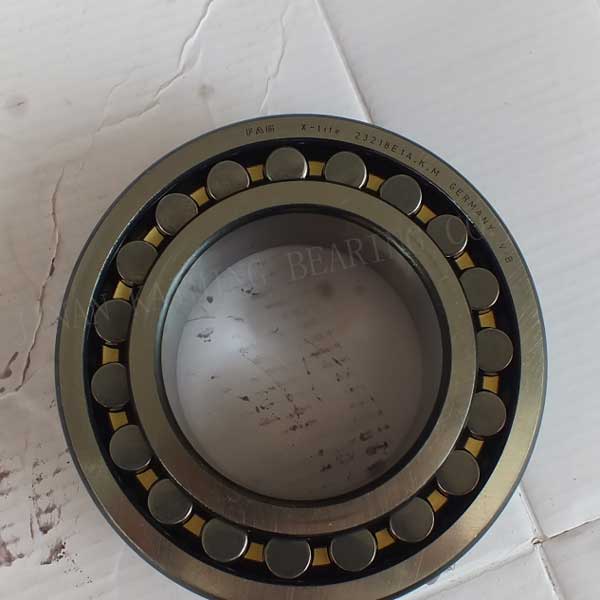

23218 E1A-K-M Spherical Roller Bearing 90mm ID x 160mm OD x 52.4mm Width Tapered

23218 E1A-K-M Spherical Roller Bearing 90mm ID x 160mm OD x 52.4mm Width Tapered 1:12 Bore Open C3



Bore Diameter:	90 mm
Outside Diameter:	160 mm
Overall Width:	52.4 mm
Bore Type:	Tapered 1:12
Outer Ring Type:	Not Split
Lubrication Hole Type:	Lubrication Groove & Holes
Internal Clearance:	C3
Closure Type:	Open
Operating Temperature Range:	Maximum of +390 °F
Dynamic Load Capacity:	355 kN
Static Load Capacity:	440 kN
Maximum RPM:	3800 RPM
Cage Material:	Steel
Bearing Material:	Steel
Cage Type:	Inner Ring Guided
Precision Rating:	Not Rated
Finish/Coating:	Uncoated
Outer Ring Width:	52.4 mm
Fillet Radius:	2 mm
Series:	232
