23160 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing
You are here: Home » Products » Spherical roller bearing » 23160 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing

Product Detail

Share to:

23160 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing

Brand: NTN Model: 23160 BL1 Type: Spherical roller bearing Inner(d): 300mm Outer(D): 500mm Width(B): 160mm Mass: 125kg
Brand: SKF/ FAG/ Timken/ IKO/ INA/ NTN/ NSK/ NACHI/ Koyo/ KMY...

Quantity:
  • 23160 BL1
  • NTN
  • 23160 BL1

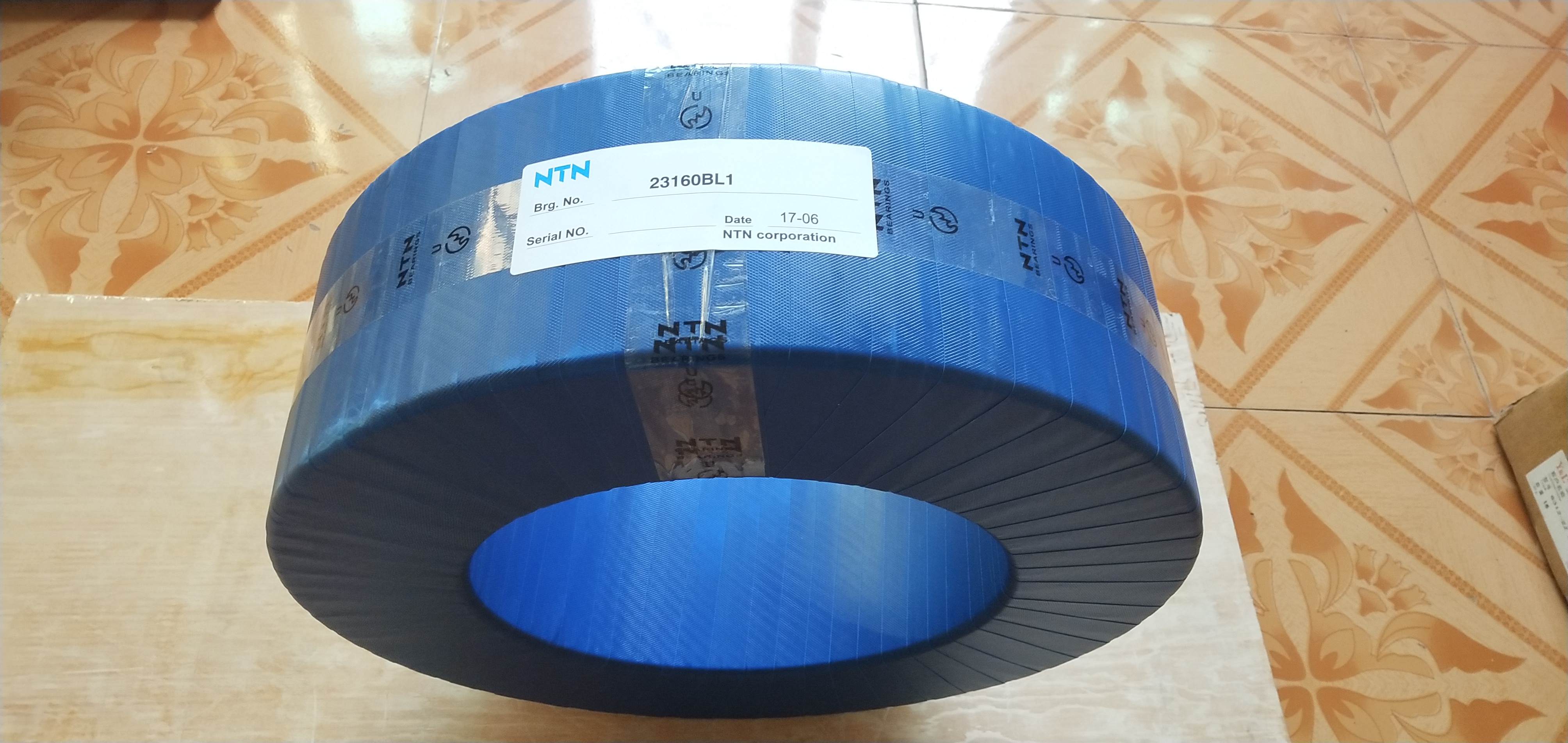

23160 BL1 Spherical roller bearing - NTN Aligning roller Bearing

23160 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing

Specification: 23160 BL1 Spherical roller bearing

Model: 23160 BL1

Inner diameter(d): 300mm

Outer diameter(D): 500mm

Thickness(T): 160mm

Weight(W): 125kg

Number of row: 2

Calculation date:

Dynamic load rating: 3368KN

Static load rating: 5100KN

Reference speed: 950r/min

Limiting speed: 1200r/min

Contact: Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com

23160 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing

Application of Spherical roller bearing

Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads.

Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are: gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling and off-road vehicles.

Spherical roller bearings

Bearing No. Dimension Basic Loading(KN) Limiting speed(rpm) Mass(kg)
d x Dx B/mm Dynamic(Cr) Static(Cor) Grease Oil
23052CA/W33 260x400x104 1230 2550 900 1200 49.8
23052MB/W33 260x400x104 1230 2550 900 1200 49.8
23052CC/W33 260x400x104 1230 2550 900 1200 49.1
23152CA/W33 260x440x144 1860 3750 800 1000 88.9
23152MB/W33 260x440x144 1860 3750 800 1000 88.9
23252CA/W33 260x480x174 2800 4750 630 800 141
23252MB/W33 260x480x174 2800 4750 630 800 141
23252CC/W33 260x480x174 2800 4750 630 800 140
23952CA/W33 260x360x75 820 1750 1100 1500 21.6
23952MB/W33 260x360x75 820 1750 1100 1500 21.6
23952CC/W33 260x360x75 820 1750 1100 1500 21.6
24152CA/W33 260x440x180 2100 4350 650 850 115
24152MB/W33 260x440x180 2100 4350 650 850 115
24152CC/W33 260x440x180 2100 4350 650 850 114
24052CA/W33 260x400x140 1780 1910 750 1000 66.7
24052MB/W33 260x400x140 1780 1910 750 1000 66.7
24052CC/W33 260x400x140 1780 1910 750 1000 66.2
24952CA/W33 260x360x100 970 2050 1000 1400 31.3
22252CA/W33 260x480x130 1900 3600 850 1100 106
22252MB/W33 260x480x130 1900 3600 850 1100 106
22252CC/W33 260x480x130 1900 3600 850 1100 105
22352CA/W33 260x540x165 3000 4700 630 800 184
22352MB/W33 260x540x165 3000 4700 630 800 184
22352CC/W33 260x540x165 3000 4700 630 800 183
23056CA/W33 280x420x106 1320 2850 850 1100 56.8
23056MB/W33 280x420x106 1320 2850 850 1100 56.8
23056CC/W33 280x420x106 1320 2850 850 1100 56.1
23156CA/W33 280x460x146 1990 4150 750 950 104
23156MB/W33 280x460x146 1990 4150 750 950 104
23156CC/W33 280x460x146 1990 4150 750 950 103
23256CA/W33 280x500x176 2580 5100 600 750 147
23256MB/W33 280x500x176 2580 5100 600 750 147
23256CC/W33 280x500x176 2580 5100 600 750 146
23956CA/W33 280x380x75 700 1850 1000 1400 25.8
23956MB/W33 280x380x75 700 1850 1000 1400 25.8
23956CC/W33 280x380x75 700 1850 1000 1400 25.2
22256CA/W33 280x500x130 1990 3600 800 1000 118
22256MB/W33 280x500x130 1990 3600 800 1000 118
22256CC/W33 280x500x130 1990 3600 800 1000 117
23060CA/W33 300x460x118 1610 3450 800 1000 75.2
23060MB/W33 300x460x118 1610 3450 800 1000 75.2
23060CC/W33 300x460x118 1610 3450 800 1000 75
23260CA/W33 300x540x192 3300 5600 530 670 192
23260MB/W33 300x540x192 3300 5600 530 670 192
23260CC/W33 300x540x192 3300 5600 530 670 191
23960CA/W33 300x420x90 1050 2500 950 1300 40.1
23960MB/W33 300x420x90 1050 2500 950 1300 40.1
23960CC/W33 300x420x90 1050 2500 950 1300 39.7
24160CA/W33 300x500x200 3400 5700 560 720 160
24160MB/W33 300x500x200 3400 5700 560 720 160
24160CC/W33 300x500x200 3400 5700 560 720 159
