| Quantity: | |
|---|---|
23044BK
SKF
23044BK

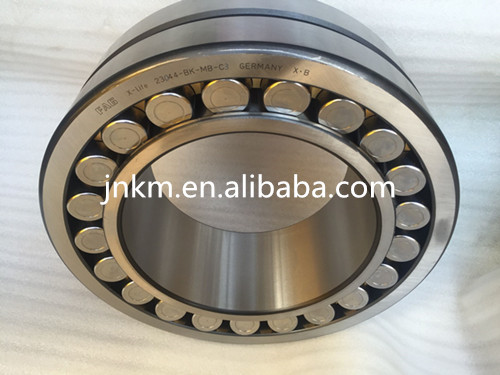

23044BK Spherical roller bearing - 23044BK+H3044
Specification: 23044BK
Model: 23044BK
Type: Spherical roller bearing
Brand: SKF/ FAG/ TIMKEN/ NTN/ NSK/ NACHI/ KOYO/ ASAHI/
INA/ IKO/ KMY/ KG/ KBC/ HRB/ KMY/ OEM...
d( Inner): 220mm D( Outer): 340mm H(Width): 90mm M(Weight): 29.6kg
Material: Chorme steel/ GCr15
Row number: 2
Calculation date:
Dynamic load rating(C): 1261KN
Static load rating(Co): 1860KN
Reference speed: 1600r/min
Limiting speed: 2000r/min
Contact:
Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com
Application of Spherical roller bearing
Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are: gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling and off-road vehicles.
Spherical roller bearings
| Bearing No. | Dimension | Basic Loading(KN) | Limiting speed(rpm) | Mass(kg) | ||
| d x Dx B/mm | Dynamic(Cr) | Static(Cor) | Grease | Oil | ||
| 23052CA/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
| 23052MB/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
| 23052CC/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.1 |
| 23152CA/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
| 23152MB/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
| 23252CA/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
| 23252MB/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
| 23252CC/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 140 |
| 23952CA/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
| 23952MB/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
| 23952CC/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
| 24152CA/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
| 24152MB/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
| 24152CC/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 114 |
| 24052CA/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
| 24052MB/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
| 24052CC/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.2 |
| 24952CA/W33 | 260x360x100 | 970 | 2050 | 1000 | 1400 | 31.3 |
| 22252CA/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
| 22252MB/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
| 22252CC/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 105 |
| 22352CA/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
| 22352MB/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
| 22352CC/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 183 |
| 23056CA/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
| 23056MB/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
| 23056CC/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.1 |
| 23156CA/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
| 23156MB/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
| 23156CC/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 103 |
| 23256CA/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
| 23256MB/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
| 23256CC/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 146 |
| 23956CA/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
| 23956MB/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
| 23956CC/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.2 |
| 22256CA/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
| 22256MB/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
| 22256CC/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 117 |
| 23060CA/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
| 23060MB/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
| 23060CC/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75 |
| 23260CA/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
| 23260MB/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
| 23260CC/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 191 |
| 23960CA/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
| 23960MB/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
| 23960CC/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 39.7 |
| 24160CA/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
| 24160MB/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
| 24160CC/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 159 |
23044BK Spherical roller bearing - 23044BK+H3044
Specification: 23044BK
Model: 23044BK
Type: Spherical roller bearing
Brand: SKF/ FAG/ TIMKEN/ NTN/ NSK/ NACHI/ KOYO/ ASAHI/
INA/ IKO/ KMY/ KG/ KBC/ HRB/ KMY/ OEM...
d( Inner): 220mm D( Outer): 340mm H(Width): 90mm M(Weight): 29.6kg
Material: Chorme steel/ GCr15
Row number: 2
Calculation date:
Dynamic load rating(C): 1261KN
Static load rating(Co): 1860KN
Reference speed: 1600r/min
Limiting speed: 2000r/min
Contact:
Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com
Application of Spherical roller bearing
Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are: gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling and off-road vehicles.
