| Quantity: | |
|---|---|
22214 E/C3
NTN
22214 E/C3

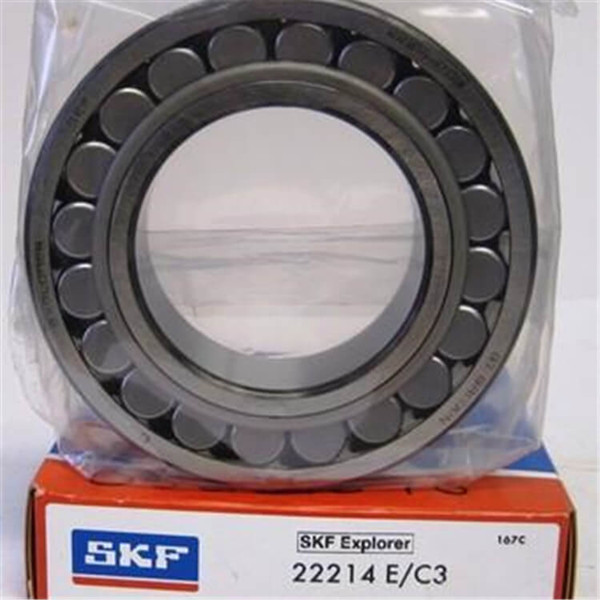

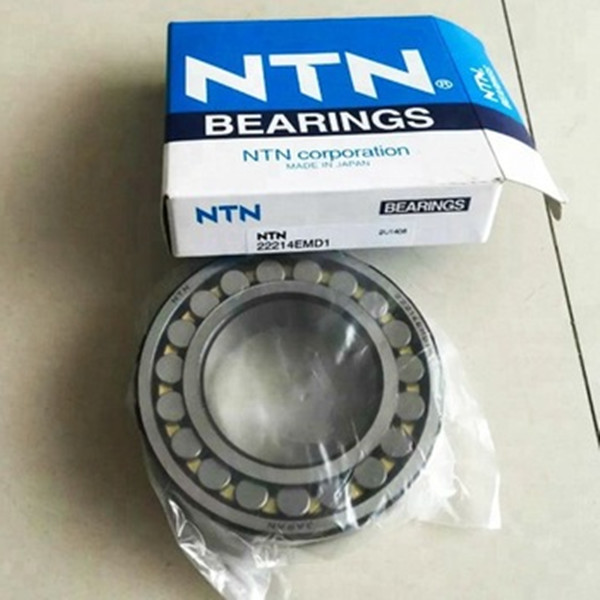

22214E/C3 Double row Spherical roller bearings on sale - NTN bearings
Specification: 22214 E/C3 spherical roller bearing
Type | Spherical roller bearing |
Series | Roller bearing |
Size | Bore: 70mm; Outer: 125mm; Thickness: 31mm; Mass: 1.55kg |
Cage material | Steel, brass, plastic |
Precision | P0/P6/P5/P4/P2 |
Dynamic load rating(C) | 213KN |
Static load rating(Co) | 228KN |
Reference speed | 5000r/min |
Limiting speed | 6700r/min |
Contact | Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com |
Introduction of spherical roller bearing
A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment. Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers.Despite what their name may imply, spherical roller bearings are not truly spherical in shape. The rolling elements of spherical roller bearings are mainly cylindrical in shape, but have a profile that makes them appear like cylinders that have been slightly over-inflated.
Spherical roller bearing series
| 20000CC | 21304CC,21305CC,21306CC...21318CC,21919CC,21320CC,21322CC, |
| 20000CCK | 21304CCK,21305CCK,21306CCK...21618CCK,21319CCK,21320CCK,21322CCK |
| 20000CC/W33 | 23022CC/W33,23024CC/W33,23026CC/W33..23038CC/W33,23040CC/W33,23044CC/W33,23048CC/W33..23096CC/W33 |
| 20000CCK/W33 | 23024CCK/W33,23026CCK/W33,23028CCK/W33...23038CCK/W33,23040CCK/W33,23044CCK/W33,23048CCK/W33... |
| 20000CCK+H | 21304CCK+H340,21305CCK+H305,21306CCK+H306...21318CCK+H318,21319CCK+H319,21320CCK+H320 |
Spheical roller bearings
ITEM | d(mm) | D(mm) | T(mm) | weight(kg) |
22210 EK | 50 | 90 | 23 | 0,62 |
22210 E | 50 | 90 | 23 | 0,63 |
BS2-2210-2CS/VT143 | 50 | 90 | 28 | 0,7 |
BS2-2210-2CSK/VT143 | 50 | 90 | 28 | 0,68 |
21310 EK | 50 | 110 | 27 | 1,35 |
21310 E | 50 | 110 | 27 | 1,35 |
22310 E | 50 | 110 | 40 | 1,9 |
22310 EK | 50 | 110 | 40 | 1,85 |
22310 E/VA405 | 50 | 110 | 40 | 1,9 |
BS2-2310-2CS/VT143 | 50 | 110 | 45 | 2,1 |
22211 EK | 55 | 100 | 25 | 0,82 |
22211 E | 55 | 100 | 25 | 0,84 |
BS2-2211-2CS/VT143 | 55 | 100 | 31 | 1 |
BS2-2211-2CSK/VT143 | 55 | 100 | 31 | 1 |
21311 EK | 55 | 120 | 29 | 1,7 |
21311 E | 55 | 120 | 29 | 1,7 |
22311 E | 55 | 120 | 43 | 2,45 |
22311 E/VA405 | 55 | 120 | 43 | 2,45 |
22311 EK | 55 | 120 | 43 | 2,4 |
22311 EK/VA405 | 55 | 120 | 43 | 2,4 |
BS2-2311-2CS/VT143 | 55 | 120 | 49 | 2,8 |
22212 EK | 60 | 110 | 28 | 1,15 |
22212 E | 60 | 110 | 28 | 1,15 |
BS2-2212-2CS/VT143 | 60 | 110 | 34 | 1,3 |
BS2-2212-2CSK/VT143 | 60 | 110 | 34 | 1,3 |
21312 EK | 60 | 130 | 31 | 2,05 |
