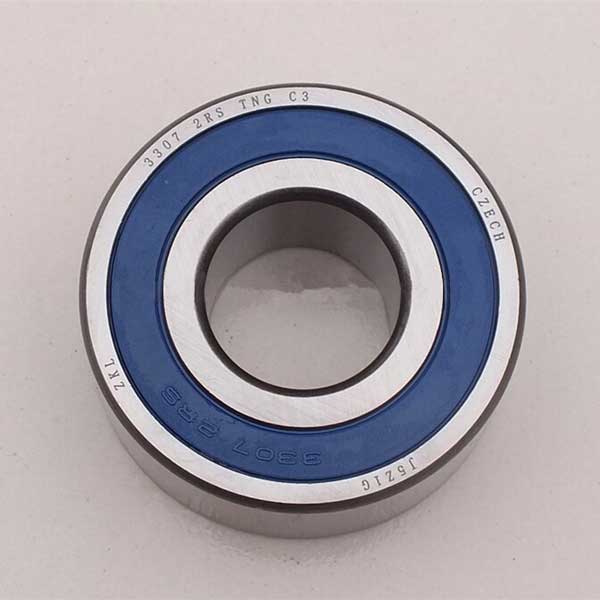

ZKL bearing Metric Size Double Row Angular Contact Ball Bearing 3307-2RS
| Double row angular contact ball bearing | |||
| 1 | Bearing No. | 3307-2RS | |
| 2 | Bearing type | Double row angular contact ball bearing | |
| 3 | Bearing material | Chrome steel (AISI52100, Gcr15, 100Cr6) | |
| 4 | Bearing structure | Inner ring, Outer ring, Cage, Steel balls, Rubber seals (2RS) | |
| 5 | Bearing basic size | 35x80x34.9 mm (d*D*B) | |
| 6 | Production standard | GB/T 292-2007, JB/T 1255, DIN628 | |
| 7 | Bearing feature | Contact angle α = 30° | |
| 8 | Available suffix | NORMAL | Nylon cage (polyamide) |
| "J" | Steel cage | ||
| "M" | Brass cage | ||
| "2RS" | Rubber seals on both sides | ||
| "ZZ" | Metal shields on both sided | ||
| 9 | Bearing sample | Available for testing before order in free | |
| 10 | Bearing packing | STWB box packing or white box packing, per cartons, per pallets | |
| Industrial white box packing, per cartons, per pallets | |||
| Bulk packing, per cartons, per pallets | |||
| 11 | Bearing marking | Bearing No., Brand name, Originavailable in ring races | |
| 12 | OEM | Available and highly welcomed | |
| 13 | Operating temperature | -30ºC to +120ºC, if beyond this range, please consult | |
| 14 | Bearing application | Autos, Textiles, Pumps, Machine tools, Precise machinery | |
| 15 | Delivery time | Samples | 2-3 days after confirmation |
| Stocks | 5-7 days after confirmation | ||
| Normal production | 20-25 days after confirmation | ||
| 16 | H.S Code | 8482103000 | |
| 17 | Payment item | T/T, L/C, D/P, D/A, OAall payment terms in negociable | |
| 18 | Bearing parameter | Basic load rating | 55000N (Cr) |
| 36500N (Cor) | |||
| Reference speed | 5800 1/min | ||
| Unit weight | 0.71 (Kg) | ||
