UCT213
ASAHI
UCT213

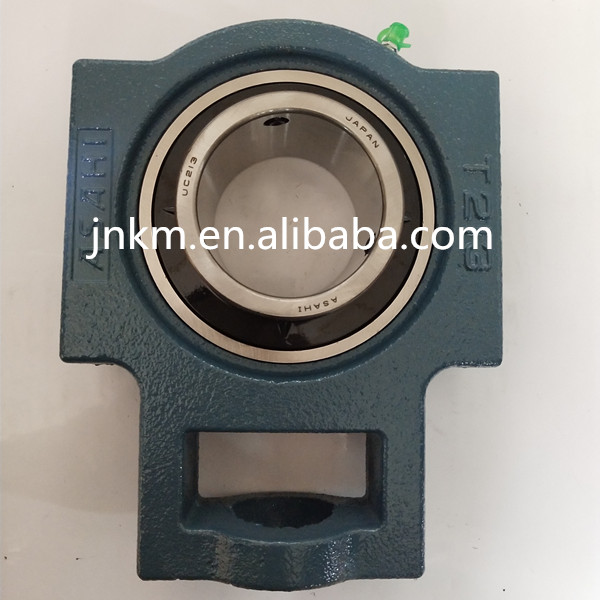

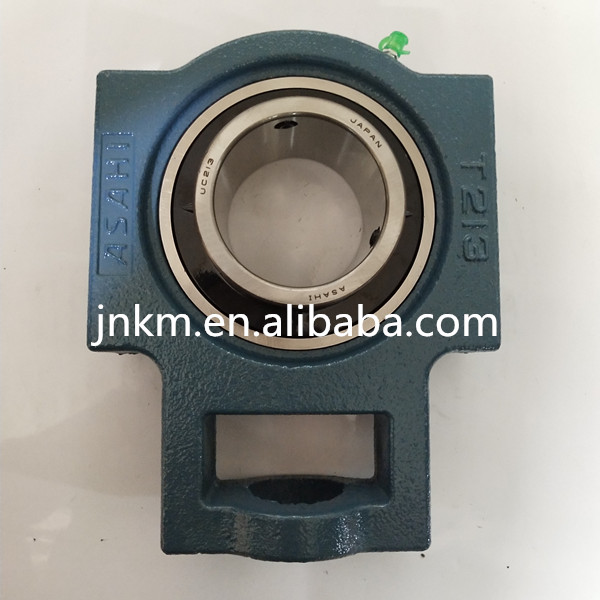

UCT213 Pillow block bearing - ASAHI UCT213
Specification: UCT213( UC213+T213)
Type: Pillow block bearing
Inner diameter(d): 65mm L: 224mm H(width): 167mm Mass(W): 6.61kg
Material: Chrome steel; GCr15
Basic dynamic load rating: 57.2KN
Basic static load rating: 40.1KN
Contact:
koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Pillow block bearing types
Each type of bearing has a different purpose, and is designed to best suit the applications and uses they're needed for.
· Standard Ball Bearings: This type of bearing is made to be friction free, in order to perform at a high level while carrying large capacity loads. A cage aligns the ball bearings properly, held within in an inner and outer ring. This maintains a smooth motion for optimal performance.
· Needle Roller Bearings: These bearings are smaller than their counter-parts, the roller bearings. But they operate similarly, just with a smaller cylinder-like roller.
· Plain Ball Bearings: Depending on the use for these bearings, they're most often constructed from a bronze and metal alloy, though some types are made from plastic. They are frequently used in linear types of applications, where they can maintain large loads while still performing at a high level. These bearings require lubrication in order to function effectively.
· Roller Bearings: These are the "big brother" of the needle roller bearing. They are applied to rotational motions, using a roller or cylinder design between an inner ring and an outer ring. There are varying types, each having their own uses. The specifications of each type is also different, depending on their application.
UCT Pillow block bearing
| UCT Series | Bearing Application | Dimension |
| UCT209 | Pillow Block Unit - Standard Duty | 87 x 45 x 102 mm |
| UCT209-26 | Pillow Block Unit - Standard Duty | 87 x 1.5/8" x 102 mm |
| UCT209-27 | Pillow Block Unit - Standard Duty | 87 x 1.11/16" x 102 mm |
| UCT209-28 | Pillow Block Unit - Standard Duty | 87 x 1.3/4" x 102 mm |
| UCT210 | Pillow Block Unit - Standard Duty | 90 x 50 x 102 mm |
| UCT210-29 | Pillow Block Unit - Standard Duty | 90 x 1.13/16" x 102 mm |
| UCT210-30 | Pillow Block Unit - Standard Duty | 90 x 1.7/8" x 102 mm |
| UCT210-31 | Pillow Block Unit - Standard Duty | 90 x 1.15/16" x 102 mm |
| UCT211 | Pillow Block Unit - Standard Duty | 106 x 55 x 130 mm |
| UCT211-32 | Pillow Block Unit - Standard Duty | 106 x 2" x 130 mm |
| UCT211-34 | Pillow Block Unit - Standard Duty | 106 x 2.1/8" x 130 mm |
| UCT211-35 | Pillow Block Unit - Standard Duty | 106 x 2.3/16" x 130 mm |
| UCT212 | Pillow Block Unit - Standard Duty | 119 x 60 x 130 mm |
| UCT212-36 | Pillow Block Unit - Standard Duty | 119 x 2.1/4" x 130 mm |
| UCT212-37 | Pillow Block Unit - Standard Duty | 119 x 2.5/16" x 130 mm |
| UCT212-38 | Pillow Block Unit - Standard Duty | 119 x 2.3/8" x 130 mm |
| UCT212-39 | Pillow Block Unit - Standard Duty | 119 x 2.7/16" x 130 mm |
| UCT213 | Pillow Block Unit - Standard Duty | 137 x 65 x 151 mm |
| UCT213-40 | Pillow Block Unit - Standard Duty | 137 x 2.1/2" x 151 mm |
| UCT214 | Pillow Block Unit - Standard Duty | 137 x 70 x 151 mm |
