Super high quality angular contact ball bearing 7308
You are here: Home » Products » Angular contact ball bearing » Super high quality angular contact ball bearing 7308

Product Detail

Share to:

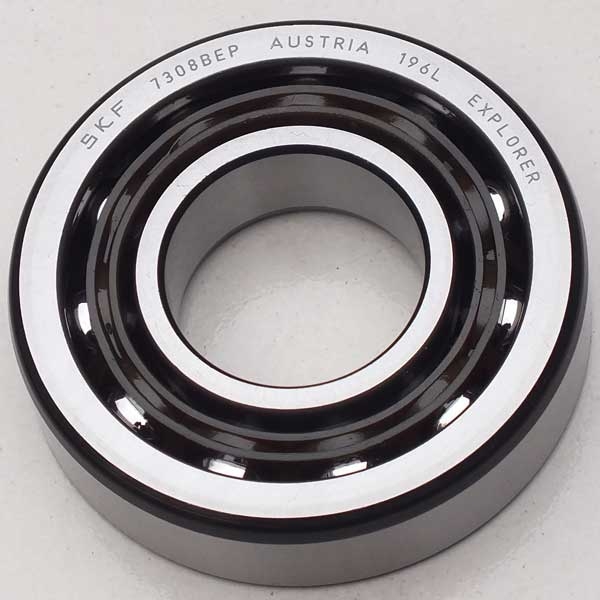

Super high quality angular contact ball bearing 7308

Angular contact ball bearing 7308 have low operating friction and high limiting speed.
Quantity:

Super high quality  angular contact ball bearing 7308

Quick Details

Structure: Angular Contact

Type: Ball

Brand Name: KMY

Bore Size: 40 mm

Outside Diameter: 90 mm

Model Number: 7308

Precision Rating: P0, P6, P5, P4, P2

Seals Type: open Z,ZZ,RS,2RS,2RZ

Number of Row: Single Row

Place of Origin: China (Mainland)

Width: 23mm

Certificate: ISO 9001:2000,SGS,BV

Clearance: C0,C2,C3,C1,C4,C5

Material: bearing steel Cage: steel / brass / nylon

Angular contact ball bearings features :

1) Load capacities are higher than deep groove ball bearings of same dimensions

2) Used for bearing radial-axial combined loads or pure thrust loads

Angular contact bearing applications :

electric motors, automotive applications, home appliances, industrial equipment.

Item no. as following :

Model Dimension 15º 25º
Limiting Speed Limiting Speed
Inner diameter Outer diameter height Rated load Grease Oil Rated load Grease Oil
Cr   Cor Grease   Oil Cr   Cor Grease   Oil
7200 10 30 9 6.4   3.8 55000 84000 6.3   3.7 52000 79000
7201 12 32 10 7.2   4.5 52000 79000 6.9   4.3 47000 69000
7202 15 35 11 9.1   5.8 47000 69000 8.8   5.6 42000 62000
7203 17 40 12 11.3   7.4 39000 59000 10.9   7.1 37000 55000
7204 20 47 14 13.1   9.6 33000 49000 12.6   9.2 29000 44000
7205 25 52 15 16.8   13.1 29000 44000 16.1   12.5 25000 39000
7206 30 62 16 23.4   18.8 23000 37000 22.3   18.0 19000 33000
7207 35 72 17 25.8   22.9 17000 29000 24.5   21.9 16000 27000
7208 40 80 18 34.1   30.9 16000 27000 32.5   29.5 14000 23000
7209 45 85 19 35.5   33.8 15000 25000 33.8   32.3 13000 21000
7210 50 90 20 43.3   40.6 14000 23000 41.3   38.7 13000 21000
7211 55 100 21 53.6   51.1 13000 21000 51.1   48.8 12000 19000
7212 60 110 22 55.8   56.2 11000 18000 53.0   53.5 10000 17000
7213 65 120 23 67.5   69.0 10000 17000 64.2   65.8 8500   15000
7214 70 125 24 70.2   74.6 9000   16000 66.6   71.7 8000   14000
7215 75 130 25 72.7   80.2 8500   15000 68.9   76.3 7500   13000
7216 80 140 26 86.5   96.5 8000   14000 82.1   91.9 7000   12000
7217 85 150 28 97.4   107.5 7500   13000 92.5   102.4 6500   11000
7218 90 160 30 121.9 131.3 7000   12000 115.8 124.6 6000   10000
7219 95 170 32 128.9   145.1 6500   11000 122.5 138.3 5700   9000
7220 100 180 34 146.2 165.9 6000   10000 138.9 158.2 5700   9000
7221 105 190 36 164.3 118.2 6000   10000 156.3 179.5 5300   8500
7222 110 200 38 170.4 202.5 5700   9000 161.8 193.0 5000   8000
7224 120 215 40 175.4 218.4 5000   8000 166.3 207.9 4300   7000
7226 130 230 40 200.6 258.3 4600   7500 190.4 246.2 4000   6500
7228 140 250 42 223.6 306.6 4000   6500 212.3 292.2 3500   5700
7230 150 270 45 240.9 341.5 3500   5700 228.7 325.5 3000   5000
7232 160 290 48 248.6 365.8 3300   5300 236.1 348.6 2800   4600
7234 170 310 52 300.2 459.2 2800   4600 285.0 473.6 2600   4300
7236 180 320 52 300.2 459.2 2800   4600 285.0 473.6 2600   4300
7238 190 340 55 300.2 459.2 2800   4600 285.0 473.6 2600   4300
7240 200 360 58 300.2 459.2 2800   4600 285.0 473.6 2600   4300
7244 220 400 65 300.2 459.2 2800   4600 285.0 473.6 2600   4300


angular contact ball bearing 7308
