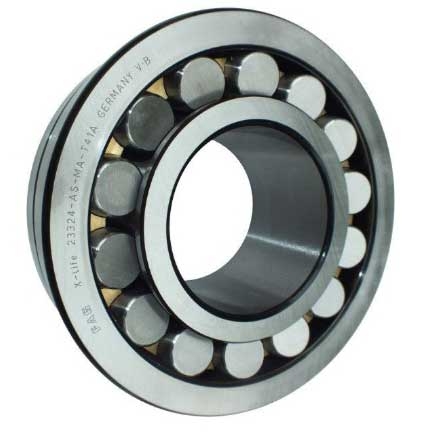

Spherical roller bearings 23324
Quick Details
BEARING NO. 23324-AS-MA-41A
Origin : Made in GERMANY
Rolling element : ROLLERS
Bearing type : Spherical Roller bearings
Dimension : 120mm x 260mm x 106mm
Weight : 29.1kg
Load : 1020 kn – 1430 kn
structure:spherical
Type:roller
Number of Row:double
Seals type:open
Spherical roller bearing 23324 for vibrating screens standards for
Bearings for vibratory applications with surface hardened cages.
Jinan Kaiming Bearing Co.,Ltd can supply normal bearings and non-standard bearings. Also can customize bearings as drawing or samples.
Spherical roller bearings are mainly used to bear radial load, but also can withstand a certain amount of axial load, but generally can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, aligning performance residence there, when the shaft by the legislature leaving the inner bend or tilt relative to the centerline of the centerline of the outer ring tilt does not exceed 0.5 ° ~ 2 °, the bearing can still be normal work. Principles and characteristics of its structure and the same self-aligning ball bearings, the only difference is that the rolling body is spherical roller, due to the different rolling element, and thus the carrying capacity of its large, widely used in mining and heavy machinery. Axial clearance range Bearing such limit the axial displacement of shaft or housing in the bearing. Spherical roller bearings and self-aligning ball bearings, in conformity with the capacity and speed limits permit, you can substitute another.
