Self-Aligning Ball Bearing, Double Seal Closure, Bore Dia.: 10mm, Round Bore, Ou

Bore Diameter: 10 mm Outside Diameter:30 mm Overall Width:14 mm
Quantity:

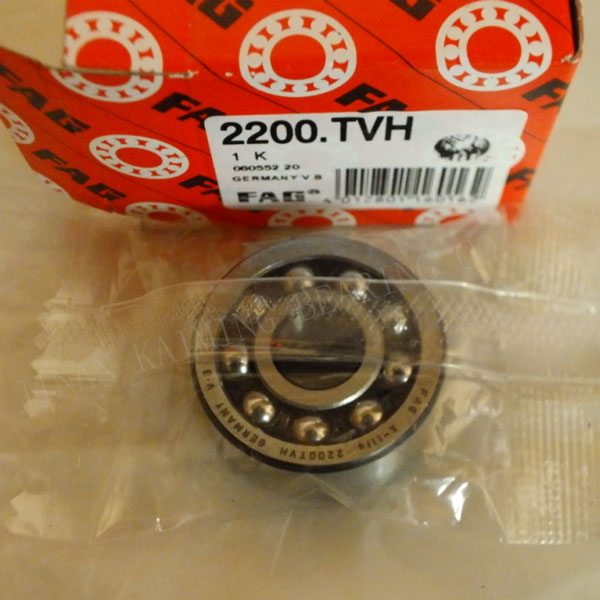

Self-Aligning Ball Bearing, Double Seal Closure, Bore Dia.: 10mm, Round Bore, Outside Dia.: 30mm 2200TVH

· Two rows of balls and a common concave sphered raceway in the outer ring

· The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing

· Particularly suitable for applications where considerable shaft deflections or misalignment are to be expected

· Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds

· Open bearing: Prefix designation E

· Sealed on both sides: Prefix designation 2RS

· Shielded on both sides: Prefix designation 2Z



Bore Diameter:

10 mm

Outside Diameter:

30 mm

Overall Width:

14 mm

Bore Type:

Round

Closure Type:

Double Seal

Internal Clearance:

C0

Operating Temperature Range:

-40 to +210 °F

Dynamic Load Capacity:

5.53 kN

Static Load Capacity:

1.18 kN

Precision Rating:

Not Rated

Maximum RPM:

17000 RPM

Cage Material:

Fiberglass Reinforced Nylon

Finish/Coating:

Uncoated

Maximum Misalignment:

2.5 °

Outer Ring Width:

14 mm

Fillet Radius:

0.6 mm

Series:

2200
