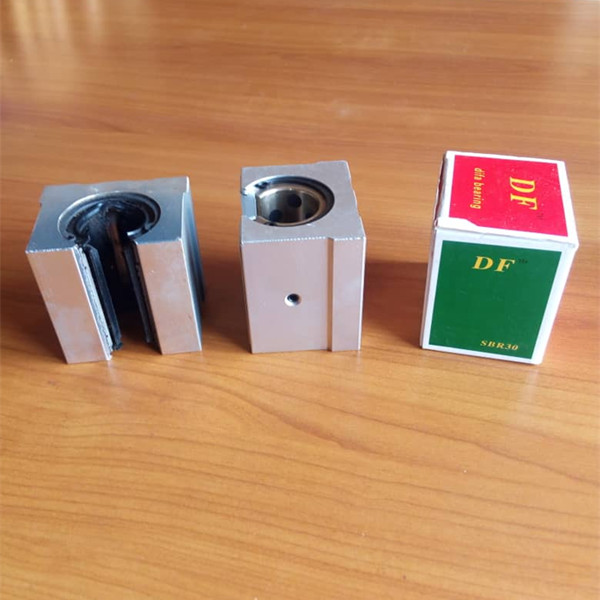

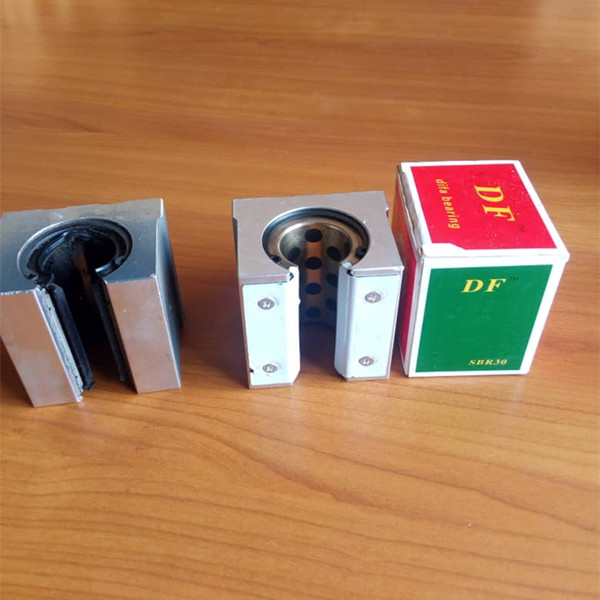

SBR30UU 30mm Aluminum open linear bearing slide bolck - Plummer block

SBR30UU 30mm Aluminum open linear bearing slide bolck - Plummer block

specification: IKO SBR30UU Linear bearing slide block

Model: SBR30UU

Brand: IKO

Dynamic load rating: 1560N

Static load rating: 2740N

Introduction of Linear bearing

A linear-motion bearing or linear slide is a bearing designed to provide free motion in one direction. There are many different types of linear motion bearings.

Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings, linear roller bearings, magnetic or fluid bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.

Linear bearing slide block

SBR16UU   SBR20UU  SBR25UU  SBR30UU  SBR35UU  SBR40UU  SBR50UU
