Welcome to Jinan kaiming Bearing Co., Ltd
Original tapered roller bearing 32209
You are here: Home » Products » Taper roller bearing » Original tapered roller bearing 32209

Product Detail

loading

Share to:
sharethis sharing button

Original tapered roller bearing 32209

Tapered roller bearing 32209 are usually separated type, that is, by inner ring with roller and cage components of cone inner ring components can be installed separately with cone outer ring (outer ring).
Quantity:

Original tapered roller bearing 32209


Quick Details

Structure: Taper

Type: Roller

Brand Name: KOYO

Bore Size: 30 - 50 mm

Outside Diameter: 40 - 100 mm

Model Number: 32209

Precision Rating: P0 P5 P6

Seals Type: OPEN

Number of Row: Single Row

Place of Origin: Japan

Material: GCr15

Vibration: V1, V2, V3, V4

Clearance: C0 C2 C3 C4 C5

Service: OEM service

sample: available

Main Market: Europe, Asia,Mid East,South America, Africa,etc

1.Basic introduction of taper roller bearing:

Tapered roller bearing mainly bear radial primarily diameter, the axial load.

Bearing capacity depends on the Angle of the outer ring raceway, the greater

the Angle, the greater the carrying capacity. The separated type bearing is a bearing,

according to the bearing the number of columns of the scroll body can be divided into

single row, double row and four row circular cone roller bearings. Single row tapered

roller bearing user need to adjustment clearance when installation adjustment;Double

row and four row circular cone roller bearings clearance has according to user requirements

before products leave the factory, no need adjustment.

2.Application:

Tapered roller bearings are usually separated type, that is, by inner ring with roller and cage components of cone inner ring componentscan be installed separately with cone outer ring (outer ring).

Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgy,

plastics machinery and other industries.

3. Tapered roller bearing list:

Type

Boundary Dimensions(mm)

Basic Load Rating (kN)

Weight

d

D

T

Cr.

Cor.

(Kg)

32204

20

47

19.25

32.5

34.8

0.156

32205

25

52

19.25

39.5

43.5

0.186

32206

30

62

21.25

50.7

57.9

0.292

32207

35

72

24.25

69.6

82.4

0.453

32208

40

80

24.75

77.7

90.8

0.554

32209

45

85

24.75

84.2

104

0.583

32210

50

90

24.75

85

105

0.646

32211

55

100

26.75

107

133

0.863

32212

60

110

29.75

132

167

1.17

32213

65

120

32.75

157

203

1.58

32214

70

125

33.25

169

225

1.664

32215

75

130

33.25

174

234

1.71

32216

80

140

35.25

203

271

2.14

32217

85

150

38.5

232

315

2.69

32218

90

160

42.5

263

362

3.44

32219

95

170

45.5

311

439

4.26

32220

100

180

49

347

495

5.21

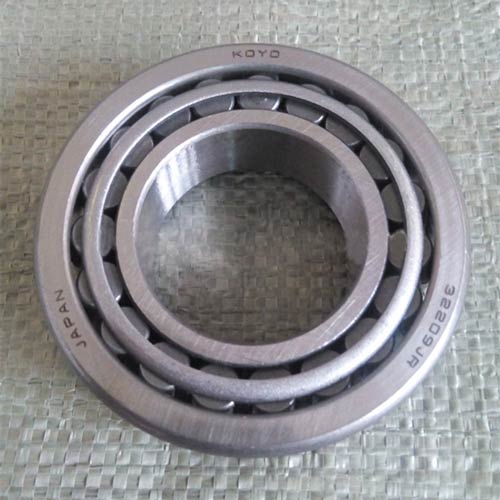

tapered roller bearing 32209
