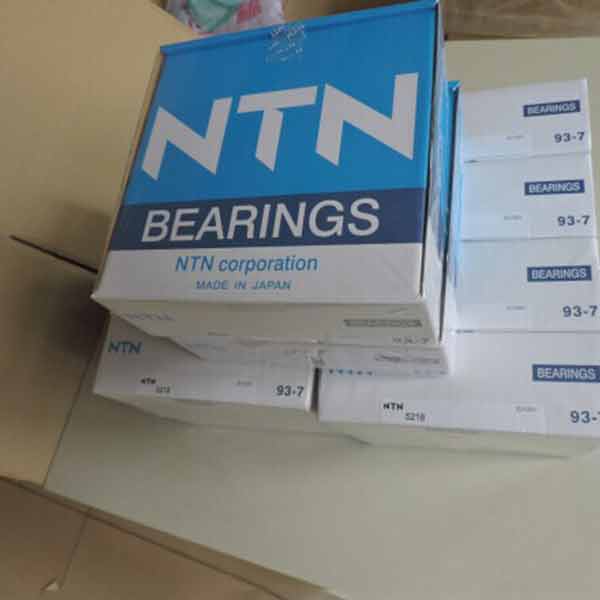

NTN Bearing Double Row Angular Contact Ball Bearing 5218
Quick Details:
Structure:angular contact
Type:ball
Inner diameter:90mm
Outer diameter:160mm
Width:52.4mm
Brand: SKF FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:double row
Place of origin:Japan
Seals type:open,sealed
| Principal dimensions | Basic load ratings | Reference speed | Limiting speed | Model no. | |||
| dynamic | static | ||||||
| d | D | B | C | C0 | |||
| mm | kN |
| r/min | ||||
| 10 | 30 | 14.3 | 6.95 | 3.8 | 14000 | 19000 | 5200 |
| 12 | 32 | 15.9 | 9.15 | 5.05 | 13000 | 17000 | 5201 |
| 15 | 35 | 15.9 | 10 | 6.05 | 11000 | 15000 | 5202 |
| 15 | 42 | 19 | 17.2 | 10.1 | 9900 | 13000 | 5302 |
| 17 | 40 | 17.5 | 12.8 | 7.9 | 9900 | 13000 | 5203 |
| 17 | 47 | 22.2 | 20.4 | 12.1 | 9000 | 12000 | 5303 |
| 20 | 47 | 20.6 | 19 | 12.1 | 8800 | 12000 | 5204 |
| 20 | 52 | 22.2 | 20.6 | 12.7 | 8000 | 11000 | 5304 |
| 25 | 52 | 20.6 | 20.6 | 14.3 | 7300 | 9800 | 5205 |
| 25 | 62 | 25.4 | 30.5 | 20.5 | 6700 | 8900 | 5305 |
| 30 | 62 | 23.8 | 28.6 | 20.4 | 6300 | 8400 | 5206 |
| 30 | 72 | 30.2 | 39.5 | 27.5 | 5700 | 7600 | 5306 |
| 35 | 72 | 27 | 38 | 27.8 | 5500 | 7400 | 5207 |
| 35 | 80 | 34.9 | 49.5 | 35 | 5000 | 6600 | 5307 |
| 40 | 80 | 30.2 | 42.5 | 32.5 | 4900 | 6600 | 5208 |
| 40 | 90 | 36.5 | 60.5 | 44 | 4400 | 5900 | 5308 |
| 45 | 85 | 30.2 | 48 | 37 | 4400 | 5900 | 5209 |
| 45 | 100 | 39.7 | 72.5 | 54 | 4000 | 5300 | 5309 |
| 50 | 90 | 30.2 | 51 | 42 | 4000 | 5300 | 5210 |
| 50 | 110 | 44.4 | 85.5 | 64.5 | 3600 | 4800 | 5310 |
| 55 | 100 | 33.3 | 63 | 53 | 3600 | 4900 | 5211 |
| 55 | 120 | 49.2 | 106 | 82 | 3300 | 4400 | 5311 |
| 60 | 110 | 36.5 | 71.5 | 58.5 | 3400 | 4500 | 5212 |
| 60 | 130 | 54 | 122 | 95.5 | 3000 | 4000 | 5312 |
| 65 | 120 | 38.1 | 83.5 | 72.5 | 3100 | 4200 | 5213 |
| 65 | 140 | 58.7 | 138 | 109 | 2800 | 3700 | 5313 |
| 70 | 125 | 39.7 | 90.5 | 79.5 | 2900 | 3900 | 5214 |
| 70 | 150 | 63.5 | 155 | 125 | 2600 | 3500 | 5314 |
| 75 | 130 | 41.3 | 90 | 80.5 | 2700 | 3600 | 5215 |
| 75 | 160 | 68.3 | 168 | 141 | 2400 | 3200 | 5315 |
| 80 | 140 | 44.4 | 106 | 95.5 | 2500 | 3400 | 5216 |
| 85 | 150 | 49.2 | 112 | 106 | 2400 | 3200 | 5217 |
| 90 | 160 | 52.4 | 140 | 129 | 2200 | 3000 | 5218 |
| 95 | 170 | 55.6 | 159 | 148 | 2100 | 2800 | 5219 |
| 100 | 180 | 60.3 | 178 | 167 | 2000 | 2700 | 5220 |
