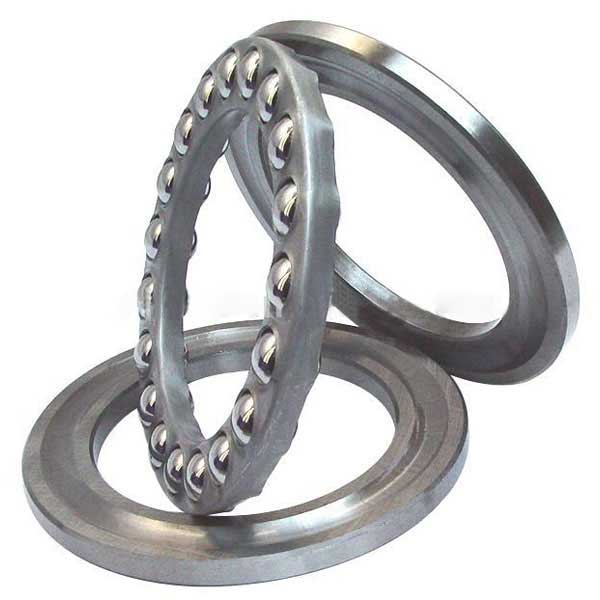

High presion thrust ball bearing 53232
Quick Details
Structure: Thrust
Type: Ball
Brand Name: KMY or FBI ...
Bore Size: 160 mm
Outside Diameter: 225 mm
Model Number: 53232 MP
Precision Rating: P0 P6 P5 P4 P2
Seals Type: No seal
Number of Row: Single Row
Place of Origin: Italy
Products name: high presion 53232 thrust ball bearing
Bearing Material: Chrome steel,GCr15 SiMn
Bearing Cage: Steel, brass cage
Bearing Packing: Single color box
Bearing Quality: ISO9001:2000
Bearing Services: OEM services
Bearing commitment: high quality high precision linear bearing lme8uu
Bearing main market: Eastern Europe,Southeast Asia, South America
Bearing width: 54.7mm
Bearing Sample: Available
53232 MP Thrust ball bearings have a spherical housing locating washer. With an appropriate housing design and in conjunction with seating washers U232, they allow angular adjustment and can therefore compensate static misalignments between the shaft and housing.
Product data of Thrust ball bearing 53232 MP
| d | 160 mm | |
| D | 225 mm | |
| T | 54,7 mm | |
| m | 6,45 kg | Mass |
| Ca | 240000 N | Basic dynamic load rating, axial |
| C0a | 765000 N | Basic static load rating, axial |
| A | 3,2 | Minimum load factor |
| nG | 1900 1/min | Limiting speed |
| Cua | 24700 N | Fatigue limit load, axial |
High presion thrust ball bearing 53232
Quick Details
Structure: Thrust
Type: Ball
Brand Name: KMY or FBI ...
Bore Size: 160 mm
Outside Diameter: 225 mm
Model Number: 53232 MP
Precision Rating: P0 P6 P5 P4 P2
Seals Type: No seal
Number of Row: Single Row
Place of Origin: Italy
Products name: high presion 53232 thrust ball bearing
Bearing Material: Chrome steel,GCr15 SiMn
Bearing Cage: Steel, brass cage
Bearing Packing: Single color box
Bearing Quality: ISO9001:2000
Bearing Services: OEM services
Bearing commitment: high quality high precision linear bearing lme8uu
Bearing main market: Eastern Europe,Southeast Asia, South America
Bearing width: 54.7mm
Bearing Sample: Available
53232 MP Thrust ball bearings have a spherical housing locating washer. With an appropriate housing design and in conjunction with seating washers U232, they allow angular adjustment and can therefore compensate static misalignments between the shaft and housing.
Product data of Thrust ball bearing 53232 MP
| d | 160 mm | |
| D | 225 mm | |
| T | 54,7 mm | |
| m | 6,45 kg | Mass |
| Ca | 240000 N | Basic dynamic load rating, axial |
| C0a | 765000 N | Basic static load rating, axial |
| A | 3,2 | Minimum load factor |
| nG | 1900 1/min | Limiting speed |
| Cua | 24700 N | Fatigue limit load, axial |
