High performance Thrust ball bearing 51103

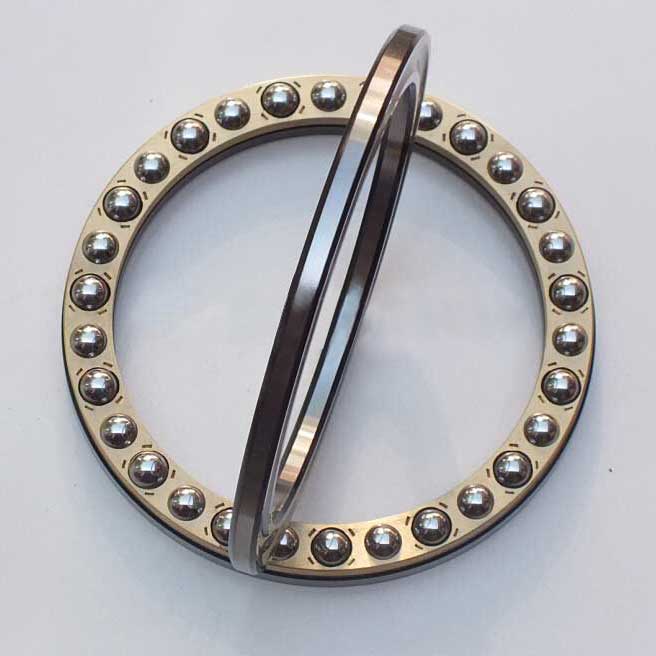

Thrust ball bearing 51103

Quick Details

Structure: Thrust

Type: Ball

Brand Name: KMY

Bore Size: 17 mm

Outside Diameter: 30 mm

Model Number: 51103

Precision Rating: P0, P6, P5, P4, P2

Seals Type: OPEN

Number of Row: Single Row

Place of Origin: Shandong, China (Mainland)

Width: 9mm

Limiting speed: 1640rpm

certificate: ISO 9001:2000 , SGS , BV

clearance: C0 , C2 , C3 , C1 , C4 , C5 , C6

commitment: high quality high precision waterproof bearing

main market: Eastern Europe,Southeast Asia, South America

Product data of NSK 51103 Thrust ball bearing

d=17 mm              Inside Dia

D=30 mm             Outside Dia

T=9 mm                Thickness

m=0.025 kg          Mass

Ca= 11400 N         Basic dynamic load rating, axial

Coa=19500 N       Basic static load rating, axial

nG= 6000 r/min    Limiting speed,Grease lub

nG= 9000 r/min    Limiting speed,Oil lub

Bearing interchangeble reference for 51103

bearing 51103

bearing 51103

NTN bearing 51103

bearing 51103

KOYO bearing 51103
