SUCSFB 206
KMY
SUCSFB 206

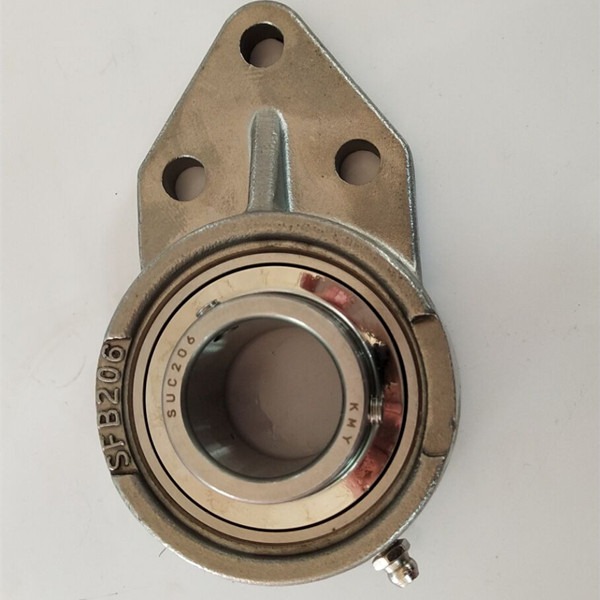

High quality SUCSFB 206 - Corrosion Resistant 3 Bolt Flange Brackets

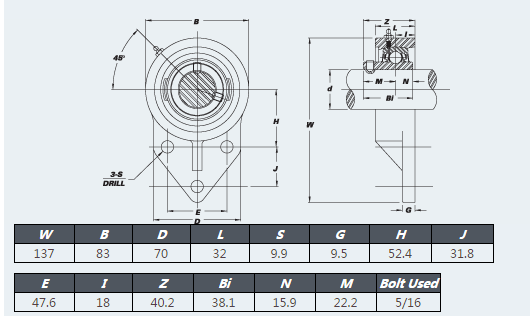

Specification: SUCSFB 206
Type: Flange bearing
Model: SUCSFB 206
Bearing model: SUC206
Block model: SFB206
Mass(W): 2.4kg
Material: Metal
Contact: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Flange bearing
Flange bearings are bearings mounted in a cast iron flange and used with other bearing types. Three basic styles exist: the round or square four-bolt, the tri-cornered three-bolt, or the diamond-shaped two-bolt. They can be used with ball bearings, plain bearings, needle roller and roller bearings.
Function of Ball Flange Bearings
A ball bearing flange is commonly installed at the outer end of the shaft to provide low-friction, smooth rotary movement of the shaft. The small amount of contact in this application does not combat linear movement, however.
High quality SUCSFB 206 - Corrosion Resistant 3 Bolt Flange Brackets
Specification: SUCSFB 206
Type: Flange bearing
Model: SUCSFB 206
Bearing model: SUC206
Block model: SFB206
Mass(W): 2.4kg
Material: Metal
Contact: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Flange bearing
Flange bearings are bearings mounted in a cast iron flange and used with other bearing types. Three basic styles exist: the round or square four-bolt, the tri-cornered three-bolt, or the diamond-shaped two-bolt. They can be used with ball bearings, plain bearings, needle roller and roller bearings.
Function of Ball Flange Bearings
A ball bearing flange is commonly installed at the outer end of the shaft to provide low-friction, smooth rotary movement of the shaft. The small amount of contact in this application does not combat linear movement, however.
