Double-Row Spherical Roller Bearing with Tapered Bore and Relubrication Groove and Holes on the Outer Ring 23244

Double-Row Spherical Roller Bearing
Quantity:
  • 23244
  • 8482102000

Double-Row Spherical Roller Bearing with Tapered Bore and Relubrication Groove and Holes on the Outer Ring 23244



Bore diam. (d) : 220 mm (+72, 0)µ
Outside diam. (D) : 400 mm (+0, 0)µ
IR width (B) : 144 mm (+0, 0)µ
OR width (C) : (+0, 0)µ
Total width (T) :
Weight : 74.8 kg
Recommended minimum temperature : -40 ° C
Recommended maximum temperature : 200 ° C
Reference speed : 900 tr/min
Limit speed : 1500 tr/min
Sealing : None
Cage : Brass

ISO dynamic load rating (C) : 289000 daN
Bearing thermal reference speed - nr : 900 tr/min
ISO static load rating (Co) : 383000 daN
Cage Frequency : 0.425
Rolling Element Frequency : 6.408
OR Frequency : : 8.085
IR Frequency : : 10.914
For rotating outer ring, please contact us.



Spherical roller bearings, cylindrical and tapered bore

Product information


Tolerances , see also text







Radial internal clearance, cylindrical bore , tapered bore, unsealed ,

see also text








Recommended fits







Shaft and housing tolerances


Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation


dynamic static load Reference Limiting


limit speed speed

d D B C C0 Pu * -  Explorer bearing


mm kN kN r/min kg -


220 300 60 546 1080 93 1900 2200 12,0 23944 CCK/W33

220 300 60 546 1 080 93 - 600 12,5 23944-2CS/VT143

220 340 90 1220 1860 163 1600 2000 30,5 23044 CC/W33 *

220 340 90 1220 1860 163 1600 2000 29,5 23044 CCK/W33 *

220 340 90 1220 1860 163 - 430 30,5 23044-2CS5/VT143 *

220 340 90 1220 1860 163 - 430 29,55 23044-2CS5K/VT143 *

220 340 118 1560 2600 212 1200 1700 40,0 24044 CC/W33 *

220 340 118 1560 2600 212 1200 1700 39,5 24044 CCK30/W33 *

220 370 120 1800 2750 232 1300 1700 53,5 23144 CC/W33 *

220 370 120 1800 2750 232 1300 1700 52,0 23144 CCK/W33 *

220 370 120 1800 2750 232 - 360 53,5 23144-2CS5/VT143 *

220 370 120 1800 2750 232 - 360 52 23144-2CS5K/VT143 *

220 370 150 2120 3350 285 850 1200 67,0 24144 CC/W33 *

220 370 150 2120 3350 285 850 1200 66,0 24144 CCK30/W33 *

220 400 108 1760 2360 196 1500 2000 60,5 22244 CC/W33 *

220 400 108 1760 2360 196 1500 2000 59,0 22244 CCK/W33 *

220 400 108 1760 2360 196 - 380 60,5 22244-2CS5/VT143 *

220 400 108 1760 2360 196 - 380 59 22244-2CS5K/VT143 *

220 400 144 2360 3450 285 1100 1500 81,5 23244 CC/W33 *

220 400 144 2360 3450 285 1100 1500 79,0 23244 CCK/W33 *

220 460 145 2700 3450 260 1000 1400 120 22344 CC/W33 *

220 460 145 2700 3450 260 1000 1400 120 22344 CCJA/W33VA405

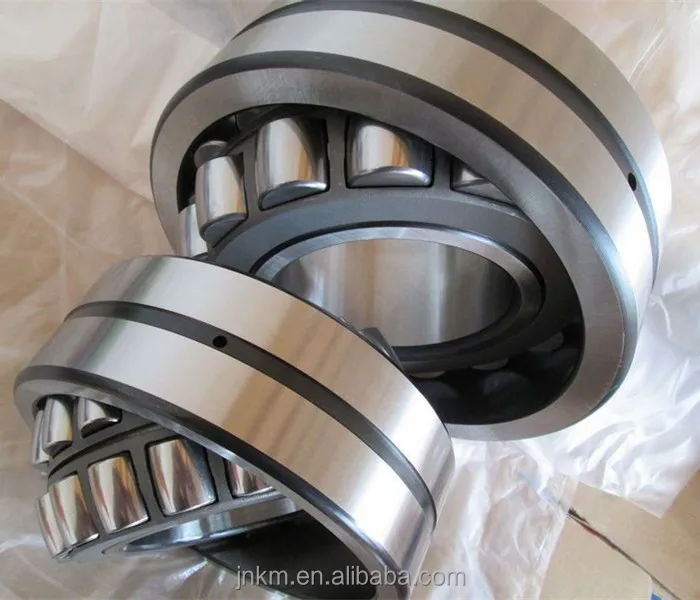

22324 cc.c3w33

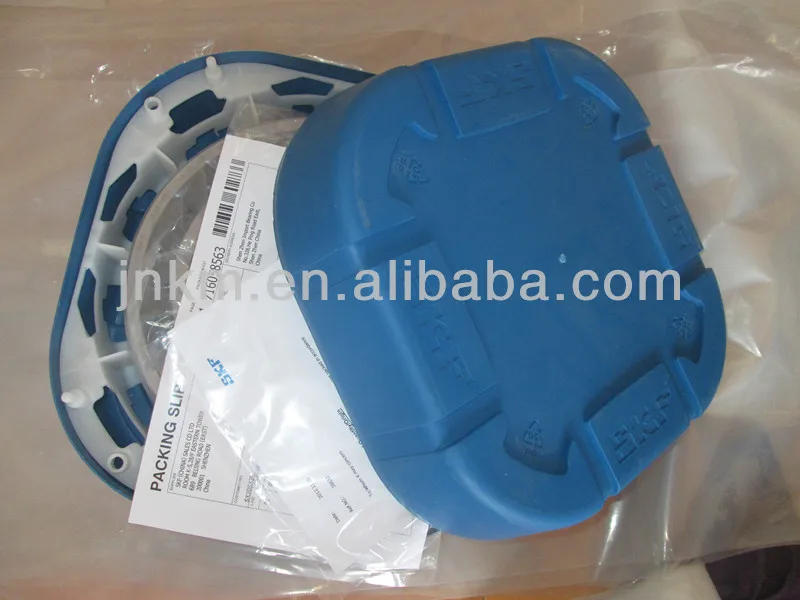

23240k
