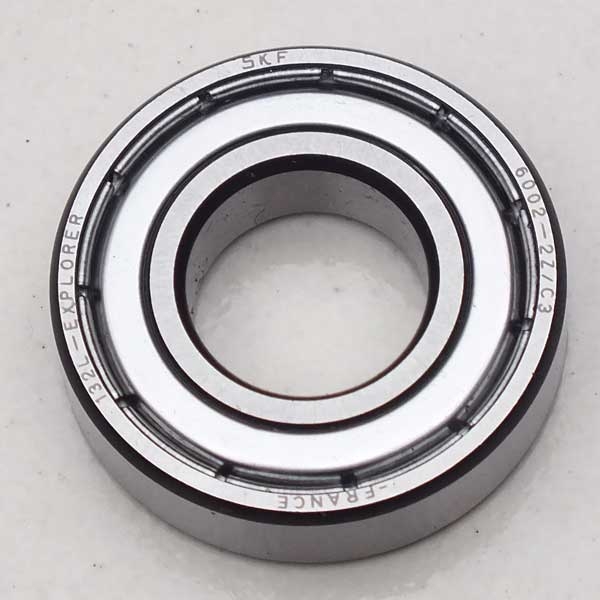

Deep groove ball bearings 6002-2ZR for electric bicycle
Quick Details
Structure: Deep Groove
Type: Ball
Brand Name: NSK IKO KOYO UBC LYC ZWZ
Bore Size: 15 mm
Outside Diameter: 32 mm
Model Number: 6002-2ZR
Precision Rating: p2 p4 p5 p6 p0
Seals Type: open zz 2rs
Number of Row: Single Row
Place of Origin: Sweden
weight: 0.030kg
width: 9mm
material: bearing steel
H.S CODE: 8482012000
The 6002-2RS and 6002-ZZ is a 15mm ball bearing that is found in many applications. The 6002-2RS ball bearing has two contact rubber seals one on each side of the ball bearing. If your application requires a 6002 ball bearing with only one seal or shield you can get this ball bearing and take one of the shields or seals off. This 15mm ball bearing is high quality and can take electric motor demands if needed.
This bearing coms in both a sealed and a shielded version. Please select between the two below. Select 2RS for a sealed bearing or ZZ for a shielded bearing.
This bearing can be found with the following part numbers on it:
6002-2RS, 6002 2RS, 6002 RS, 6002RS, 6002-ZZ, 6002 ZZ, 6002ZZ, 6002 Z
Product data of Deep groove ball bearings 6002-2ZR / FAG 6002-2Z
d=15 mm
D=32 mm
B=9 mm
C=5900 N Basic dynamic load rating, radial
C0=2850 N Basic static load rating, radial
Cua=134 N Fatigue load limit
nG=28500 r/min Limiting speed
nB=21500 r/min Reference speed
m=0.033 kg Mass
Part stocklist of our Deep groove ball bearings
| 6000.2RSR | 6038M | 61815YN.2ZR | 61909.2ZR | 62203.2RSR | 6304.2ZR |
| 6000.2ZR | 6040M | 61815 Y | 61910.2RSR | 62204.2RSR | 6305.2RSR |
| 6001.2RSR | 6044M | 61815YN | 61911.2RSR | 62205.2RSR | 6305.2ZR |
| 6001.2ZR | 6048M | 61816YN.2RSR | 61912.2RSR | 62206.2RSR | 6306.2RSR |
| 6002.2RSR | 6052M | 61816YN.2ZR | 61914.2RSR | 62207.2RSR | 6306.2ZR |
| 6002.2ZR | 6056M | 61816 Y | 61915.2RSR | 62208.2RSR | 6307.2RSR |
| 6003.2RSR | 6060M | 61816YN | 6200.2RSR | 62209.2RSR | 6307.2ZR |
| 6003.2ZR | 6064M | 61817YN.2RSR | 6200.2ZR | 62210.2RSR | 6308.2RSR |
| 6004.2RSR | 6068M | 61817YN.2ZR | 6201.2RSR | 6221.2ZR | 6308.2ZR |
| 6004.2ZR | 6072M | 61817 Y | 6201.2ZR | 6222.2ZR | 6309.2RSR |
| 6005.2RSR | 607.2RS | 61817YN | 6202.2RSR | 6224.2ZR | 6309.2ZR |
| 6005.2ZR | 607.2Z | 61818YN.2RSR | 6202.2ZR | 6226.2ZR | 6310.2RSR |
| 6006.2RSR | 608.2RS | 61818YN.2ZR | 6203.2RSR | 62302.2RSR | 6310.2ZR |
| 6006.2ZR | 608.2Z | 61818 Y | 6203.2ZR | 62303.2RSR | 6311.2RSR |
| 6007.2RSR | 609.2RSR | 61818YN | 6204.2RSR | 62304.2RSR | 6311.2ZR |
| 6007.2ZR | 609.2ZR | 61819YN.2RSR | 6204.2ZR | 62305.2RSR | 6312.2RSR |
| 6008.2RSR | 618/500M | 61819YN.2ZR | 6205.2RSR | 62306.2RSR | 6312.2ZR |
| 6008.2ZR | 618/530M | 61819 Y | 6205.2ZR | 62307.2RSR | 6313.2RSR |
| 6009.2RSR | 618/560M | 61819YN | 6206.2RSR | 62308.2RSR | 6313.2ZR |
| 6009.2ZR | 618/600M | 61820YN.2RSR | 6206.2ZR | 62309.2RSR | 6314.2RSR |
| 6010.2RSR | 618/630M | 61820YN.2ZR | 6207.2RSR | 62310.2RSR | 6314.2ZR |
| 6010.2ZR | 618/670M | 61820 Y | 6207.2ZR | 6232M | 6315.2RSR |
| 6011.2RSR | 618/710M | 61820YN | 6208.2RSR | 623.2RS | 6315.2ZR |
| 6011.2ZR | 618/750M | 61821YN.2RSR | 6208.2ZR | 623.2Z | 6316.2RSR |
| 6012.2RSR | 618/800M | 61821YN.2ZR | 6209.2RSR | 6234M | 6316.2ZR |
| 6012.2ZR | 618/850M | 61821 Y | 6209.2ZR | 6236M | 6317.2RSR |
| 6013.2RSR | 61809Y.2RSR | 61821YN | 6210.2RSR | 6238M | 6317.2ZR |
| 6013.2ZR | 61809Y.2ZR | 61822YN.2RSR | 6210.2ZR | 6240M | 6318.2RSR |
| 6014.2RSR | 61809 | 61822YN.2ZR | 6211.2RSR | 624.2RS | 6318.2ZR |
| 6014.2ZR | 61809Y | 61822 Y | 6211.2ZR | 624.2Z | 6319.2ZR |
| 6015.2RSR | 61810Y.2RSR | 61822YN | 6212.2RSR | 6244M | 6320.2ZR |
| 6015.2ZR | 61810Y.2ZR | 61824YN.2ZR | 6212.2ZR | 6248M | 6322.2RSR |
| 6016.2ZR | 61810 | 61824 Y | 6213.2RSR | 6252M | 6322.2ZR |
| 6017.2RSR | 61810Y | 61824YN | 6213.2ZR | 625.2RS | 6326M |
| 6017.2ZR | 61811YN.2RSR | 61828 | 6214.2RSR | 625.2Z | 6328M |
| 6018.2RSR | 61811YN.2ZR | 61828YN | 6214.2ZR | 6256M | 6330M |
| 6018.2ZR | 61811 | 61864M | 6215.2RSR | 626.2RS | 6332M |
| 6019.2RSR | 61811YN | 61868M | 6215.2ZR | 626.2Z | 6334M |
| 6020.2RSR | 61812YN.2RSR | 61872M | 6216.2RSR | 627.2RS | 6336M |
| 6020.2ZR | 61812YN.2ZR | 61876M | 6216.2ZR | 627.2Z | 6338M |
| 6021.2ZR | 61812 Y | 61880M | 6217.2RSR | 629.2RSR | 6340M |
| 6022.2RSR | 61812YN | 61884M | 6217.2ZR | 629.2ZR | 634.2RS |
| 6022.2ZR | 61813YN.2RSR | 61888M | 6218.2RSR | 6300.2RSR | 634.2Z |
| 6024.2RSR | 61813YN.2ZR | 61892M | 6218.2ZR | 6300.2ZR | 6344M |
| 6024.2ZR | 61813 Y | 61896M | 6219.2RSR | 6301.2RSR | 6348M |
| 6026.2RSR | 61813YN | 61908 2RS | 6219.2ZR | 6301.2ZR | 635.2RS |
| 6026.2ZR | 61814YN.2RSR | 61908.2RSR | 62200.2RSR | 6302.2RSR | 635.2Z |
| 6028.2ZR | 61814YN.2ZR | 61908 2Z | 62201.2RSR | 6302.2ZR | 6415M |
| 6032.2RSR | 61814 Y | 61908.2ZR | 62202.2RSR | 6303.2RSR | 6416M |
| 6032M | 61814YN | 61909.2RSR | 6220.2RSR | 6303.2ZR | 6417M |
| 6036M | 61815YN.2RSR | 61909 2Z | 6220.2ZR | 6304.2RSR | 6418M |
Deep groove ball bearings 6002-2ZR for electric bicycle
Quick Details
Structure: Deep Groove
Type: Ball
Brand Name: NSK IKO KOYO UBC LYC ZWZ
Bore Size: 15 mm
Outside Diameter: 32 mm
Model Number: 6002-2ZR
Precision Rating: p2 p4 p5 p6 p0
Seals Type: open zz 2rs
Number of Row: Single Row
Place of Origin: Sweden
weight: 0.030kg
width: 9mm
material: bearing steel
H.S CODE: 8482012000
The 6002-2RS and 6002-ZZ is a 15mm ball bearing that is found in many applications. The 6002-2RS ball bearing has two contact rubber seals one on each side of the ball bearing. If your application requires a 6002 ball bearing with only one seal or shield you can get this ball bearing and take one of the shields or seals off. This 15mm ball bearing is high quality and can take electric motor demands if needed.
This bearing coms in both a sealed and a shielded version. Please select between the two below. Select 2RS for a sealed bearing or ZZ for a shielded bearing.
This bearing can be found with the following part numbers on it:
6002-2RS, 6002 2RS, 6002 RS, 6002RS, 6002-ZZ, 6002 ZZ, 6002ZZ, 6002 Z
Product data of Deep groove ball bearings 6002-2ZR / FAG 6002-2Z
d=15 mm
D=32 mm
B=9 mm
C=5900 N Basic dynamic load rating, radial
C0=2850 N Basic static load rating, radial
Cua=134 N Fatigue load limit
nG=28500 r/min Limiting speed
nB=21500 r/min Reference speed
m=0.033 kg Mass
