China gold factory skf direct sale Single row 2213EC series Cylindrical roller bearing
Product Description
1.Top quality Single row Cylindrical roller bearing
2.100% Strict quality test before package
3.Chinese factory direct sale
4.Bearings can be customerized
5.Certification:CE,SGS,ISO and so on
About cylindrical roller bearing:
The cylindrical roller bearing are separate.This kind of bearing simplifies mounting and dismounting.The rollers contacts raceways in modified line so that it decreases edge stress.Compared with ball bearings in same size,cylindrical roller bearing has high radial load,and can bear little axial load when choosing specific cylindrical roller bearing structure.

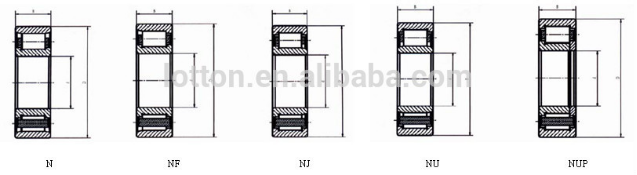

Structure types:
Single row:N.NU,NJ,NF,NUP,NCF and NJG
Double row:NNU,NN,NNC,NNCF and NNCL
Four row

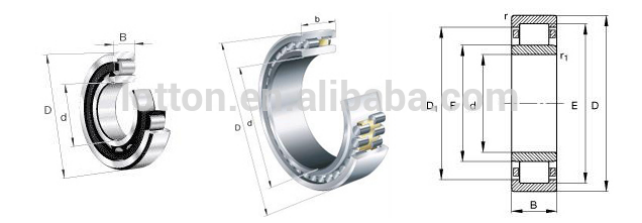

Detailed data:
| Type | Dimension | Rated load | Limit speed | Mass | ||||
| d | D | B | C | C0 | grease | oil | ||
| mm | mm | mm | kN | kN | r/min | r/min | kg | |
| NJ 2213 NU 2213 NUP 2213 | 65 | 120 | 31 | 136 | 144 |
3900
|
5300
| 1.45 1.40 1.50 |
* We can offer the cylindrical roller bearing:dimater of inner ring from 15-1500mm with all structures.
