Specification: IKO CF18BUU Cam Follower

Model: CF18BUU

Type: Cam Follower

Crowned or parallel OD: Parallel

Inner diameter(d): 20mm

Outer diameter(D): 40mm

Width(H): 58.1mm

Mass(W): 0.25kg

Dynamic load rating: 14.8KN

Static load rating: 25.2KN

Contact: koyo@chinakmbearing.com; Whatsapp: +86-17854271903

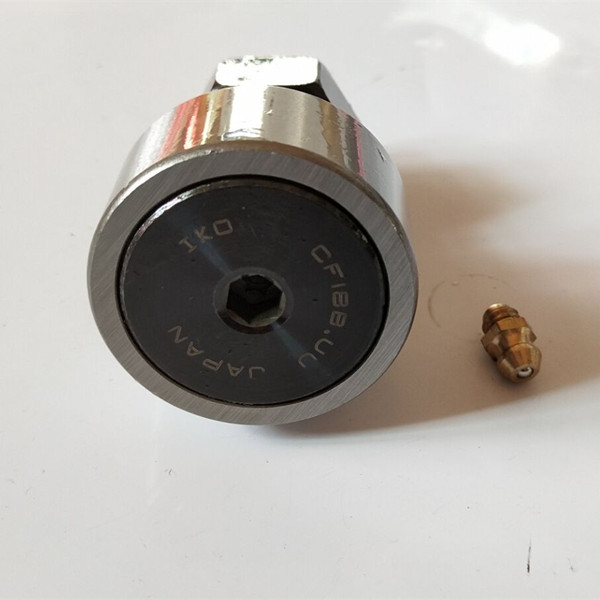

CF18BUU Cam Follower

Features of Came Follwer

1. Accommodate high radial loads

2. Accommodate axial loads

3. Long service life

4. Easy to mount

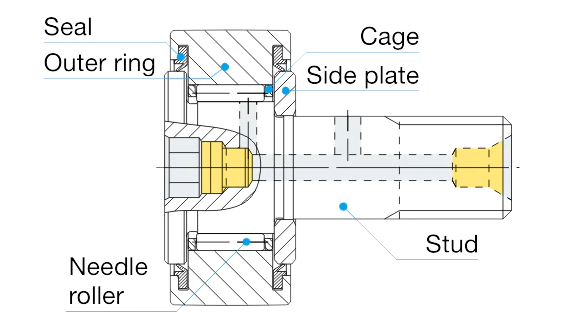

Cam Follower:

Cam followers are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). Cam followers are available in several designs and variants to meet the requirements of different applications
