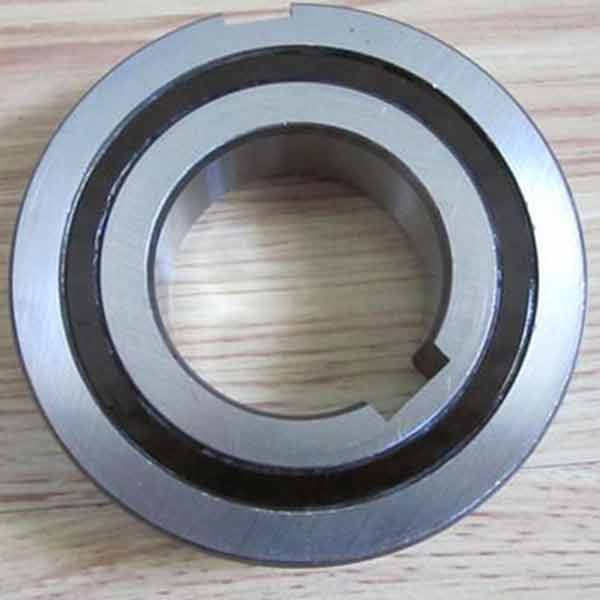

Bearing 40x80x22 mm One way clutch bearing CSK40 PP
CSK40-2RS One-way clutch Sealed Bearing, inner diameter is 40mm, outer diameter is 80mm and width is 27mm.
Item: CSK40-2RS Bearing
Type: One-Way Clutch Bearing
Inner Diameter: 40mm
Outer Diameter: 80mm
Width: 27mm
Torque: 7 Ncm
Quantity: One Bearing
| Part number | nominal torque | main dimension | limit speed rpm | bearing series | weightkg | |||||
| inner ring | outer ring | |||||||||
| ID | OD | B | grease | oil | grease | oil | ||||
| CSK8 |
| 8 | 22 | 9 | 15,000 | 15,000 | 15,000 | 15,000 |
| 0.015 |
| CSK12 | 7.4 | 12 | 32 | 10 | 10000 | 11000 | 5500 | 6500 | 6201 | 0.05 |
| CSK15 | 13.5 | 15 | 35 | 11 | 8400 | 9400 | 5000 | 6000 | 6202 | 0.06 |
| CSK17 | 24.5 | 17 | 40 | 12 | 6300 | 7800 | 4200 | 5200 | 6203 | 0.07 |
| CSK20 | 40 | 20 | 47 | 14 | 6300 | 7800 | 4200 | 5200 | 6204 | 0.11 |
| CSK25 | 88 | 25 | 52 | 15 | 4800 | 5900 | 3400 | 4200 | 6205 | 0.14 |
| CSK30 | 110 | 30 | 62 | 16 | 4000 | 5000 | 2800 | 3500 | 6206 | 0.21 |
| CSK35 | 140 | 35 | 72 | 17 | 3500 | 4000 | 2200 | 2800 | 6207 | 0.3 |
| CSK40 | 260 | 40 | 80 | 22 | 3000 | 3800 | 2000 | 2500 | 6208 | 0.5 |
