AH 3140
KMY
AH 3140

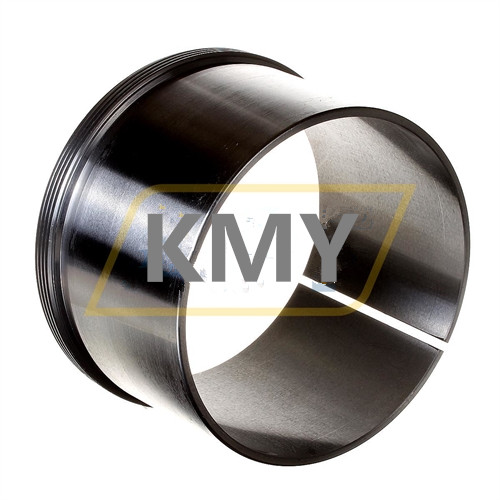

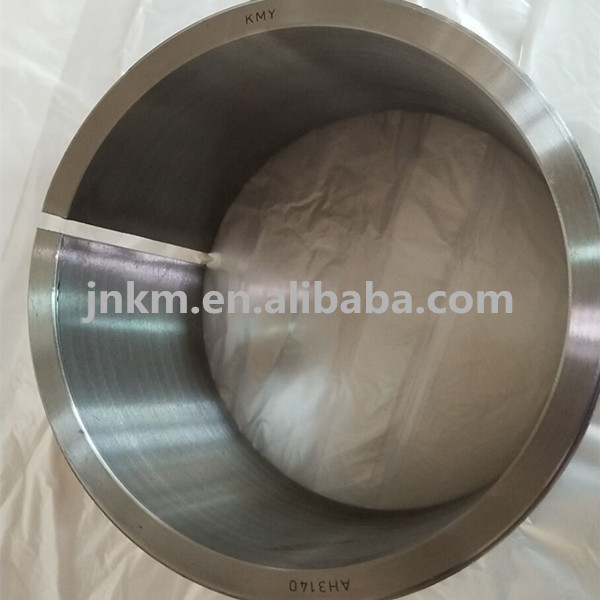

AH 3140 Withdrawal sleeves - AH 3140 bearing accessories
Specification: AH 3140
| Brand | SKF/FAG/TIMKEN/NTN/NSK/KOYO/NACHI/INA/IKO/OEM/KMY... |
| Material | GCr15 chrome steel |
| d1 | 190mm |
| d | 200mm |
| B1 | 134mm |
| B2 | 140mm |
| G | Tr220x4 |
| G1 | 21 |
| Mass weight | 5.65 |
| Certificate | ISO9001:2008 |
Contact: Email: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Compatible Bearings:
23140K
C3140K
Withdrawal Sleeves
Description: Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable. Lock nuts are not supplied with the sleeve and must be ordered separately. End plates are not produced by SKF.
More details
