22344 BL1
NTN
22344 BL1

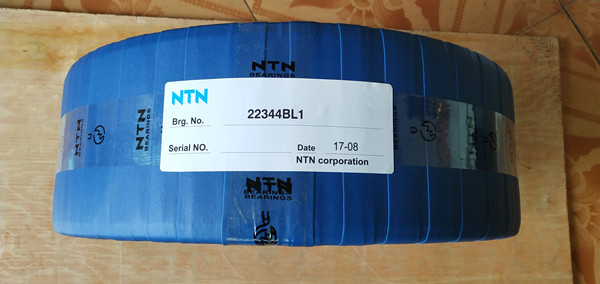

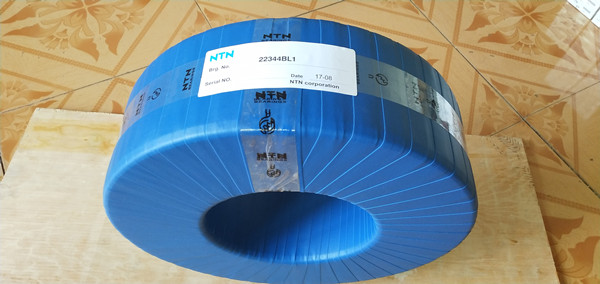

22344 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing
Specification: 22344 BL1 Spherical roller bearing
Model: 22344 BL1
Inner diameter(d): 220mm
Outer diameter(D): 460mm
Thickness(T): 145mm
Weight(W): 120kg
Number of row: 2
Calculation date:
Dynamic load rating: 2839KN
Static load rating: 3450KN
Reference speed: 1000r/min
Limiting speed: 1400r/min
Contact: Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com
Application of Spherical roller bearing
Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads.
Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are: gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling and off-road vehicles.
Spherical roller bearings
Bearing No. | Dimension | Basic Loading(KN) | Limiting speed(rpm) | Mass(kg) | ||
d x Dx B/mm | Dynamic(Cr) | Static(Cor) | Grease | Oil | ||
23052CA/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
23052MB/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
23052CC/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.1 |
23152CA/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
23152MB/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
23252CA/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
23252MB/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
23252CC/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 140 |
23952CA/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
23952MB/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
23952CC/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
24152CA/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
24152MB/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
24152CC/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 114 |
24052CA/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
24052MB/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
24052CC/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.2 |
24952CA/W33 | 260x360x100 | 970 | 2050 | 1000 | 1400 | 31.3 |
22252CA/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
22252MB/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
22252CC/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 105 |
22352CA/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
22352MB/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
22352CC/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 183 |
23056CA/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
23056MB/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
23056CC/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.1 |
23156CA/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
23156MB/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
23156CC/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 103 |
23256CA/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
23256MB/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
23256CC/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 146 |
23956CA/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
23956MB/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
23956CC/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.2 |
22256CA/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
22256MB/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
22256CC/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 117 |
23060CA/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
23060MB/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
23060CC/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75 |
23260CA/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
23260MB/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
23260CC/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 191 |
23960CA/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
23960MB/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
23960CC/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 39.7 |
24160CA/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
24160MB/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
24160CC/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 159 |
22344 BL1 double row Spherical roller bearing - NTN Aligning roller Bearing
Specification: 22344 BL1 Spherical roller bearing
Model: 22344 BL1
Inner diameter(d): 220mm
Outer diameter(D): 460mm
Thickness(T): 145mm
Weight(W): 120kg
Number of row: 2
Calculation date:
Dynamic load rating: 2839KN
Static load rating: 3450KN
Reference speed: 1000r/min
Limiting speed: 1400r/min
Contact: Whatsapp: +86-17854271903; Email: koyo@chinakmbearing.com
Application of Spherical roller bearing
Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads.
Spherical bearings are used in countless industrial applications, where there are heavy loads, moderate speeds and possibly misalignment. Some common application areas are: gearboxes, wind turbines, continuous casting machines, material handling, pumps, mechanical fans and blowers, mining and construction equipment, pulp and paper processing equipment, marine propulsion and offshore drilling and off-road vehicles.
Spherical roller bearings
Bearing No. | Dimension | Basic Loading(KN) | Limiting speed(rpm) | Mass(kg) | ||
d x Dx B/mm | Dynamic(Cr) | Static(Cor) | Grease | Oil | ||
23052CA/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
23052MB/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.8 |
23052CC/W33 | 260x400x104 | 1230 | 2550 | 900 | 1200 | 49.1 |
23152CA/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
23152MB/W33 | 260x440x144 | 1860 | 3750 | 800 | 1000 | 88.9 |
23252CA/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
23252MB/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 141 |
23252CC/W33 | 260x480x174 | 2800 | 4750 | 630 | 800 | 140 |
23952CA/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
23952MB/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
23952CC/W33 | 260x360x75 | 820 | 1750 | 1100 | 1500 | 21.6 |
24152CA/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
24152MB/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 115 |
24152CC/W33 | 260x440x180 | 2100 | 4350 | 650 | 850 | 114 |
24052CA/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
24052MB/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.7 |
24052CC/W33 | 260x400x140 | 1780 | 1910 | 750 | 1000 | 66.2 |
24952CA/W33 | 260x360x100 | 970 | 2050 | 1000 | 1400 | 31.3 |
22252CA/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
22252MB/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 106 |
22252CC/W33 | 260x480x130 | 1900 | 3600 | 850 | 1100 | 105 |
22352CA/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
22352MB/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 184 |
22352CC/W33 | 260x540x165 | 3000 | 4700 | 630 | 800 | 183 |
23056CA/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
23056MB/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.8 |
23056CC/W33 | 280x420x106 | 1320 | 2850 | 850 | 1100 | 56.1 |
23156CA/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
23156MB/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 104 |
23156CC/W33 | 280x460x146 | 1990 | 4150 | 750 | 950 | 103 |
23256CA/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
23256MB/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 147 |
23256CC/W33 | 280x500x176 | 2580 | 5100 | 600 | 750 | 146 |
23956CA/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
23956MB/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.8 |
23956CC/W33 | 280x380x75 | 700 | 1850 | 1000 | 1400 | 25.2 |
22256CA/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
22256MB/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 118 |
22256CC/W33 | 280x500x130 | 1990 | 3600 | 800 | 1000 | 117 |
23060CA/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
23060MB/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75.2 |
23060CC/W33 | 300x460x118 | 1610 | 3450 | 800 | 1000 | 75 |
23260CA/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
23260MB/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 192 |
23260CC/W33 | 300x540x192 | 3300 | 5600 | 530 | 670 | 191 |
23960CA/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
23960MB/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 40.1 |
23960CC/W33 | 300x420x90 | 1050 | 2500 | 950 | 1300 | 39.7 |
24160CA/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
24160MB/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 160 |
24160CC/W33 | 300x500x200 | 3400 | 5700 | 560 | 720 | 159 |
